Diverter valves are essential components in fluid handling systems, enabling the redirection of flow from one pathway to another.

These valves are widely used in plumbing, heating, 통풍, 공기 조절 (HVAC), 수처리, 산업 가공.

Among the various materials used for diverter valves, brass stands out as the preferred choice due to its excellent machinability, 부식 저항, 항균 특성, 그리고 미적 매력.

The manufacturing of high-quality brass diverter valves requires a combination of precision casting and advanced CNC machining.

잃어버린 왁스 캐스팅 (투자 캐스팅) is the ideal method for producing the complex internal passages and intricate geometries of diverter valve bodies.

When combined with precision CNC machining, this process delivers valves with exceptional dimensional accuracy, 부드러운 표면 마감, and reliable performance.

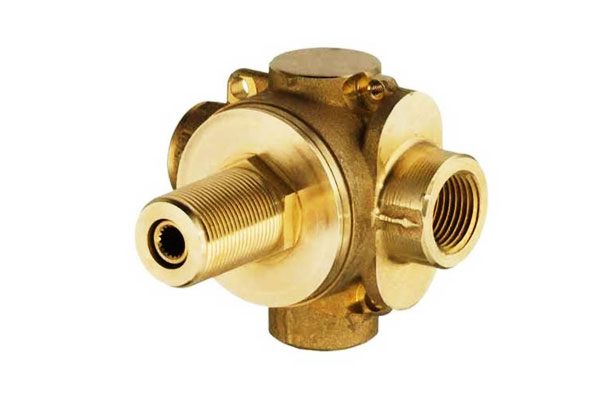

1. What Is a Brass Diverter Valve?

에이 brass diverter valve is a multi-port fluid-control device designed to redirect, 선택하다, or distribute fluid flow between different flow paths.

Unlike a conventional two-port shut-off valve, a diverter valve uses multiple ports and an internal movable element to determine which passages are connected at a given operating position.

The valve body is normally the pressure-containing component. It incorporates the inlet and outlet ports, internal flow passages, valve chamber, 씰링 인터페이스, and connection features.

An internal element—commonly a ball, 플러그, cartridge, or spindle-operated mechanism—changes the flow path when the valve is rotated or actuated.

A typical three-port diverter valve, 예를 들어, may operate in two basic positions:

Position A: Inlet → Outlet A
Position B: Inlet → Outlet B

More sophisticated configurations can combine or isolate flow paths depending on the process requirements.

The performance of a brass diverter valve depends on more than its ability to switch flow.

The valve must maintain pressure integrity, controlled flow resistance, reliable shutoff, 치수 안정성, and repeatable sealing throughout its intended service life.

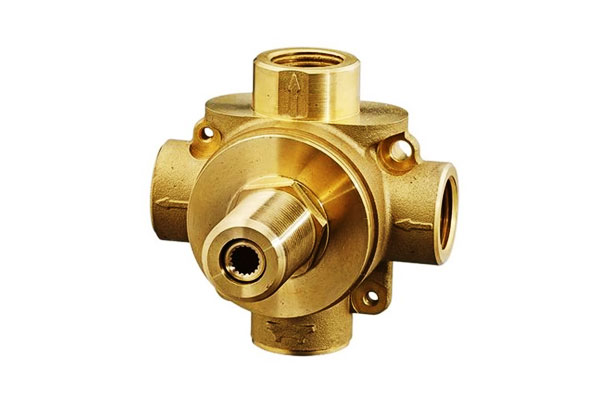

Types of Diverter Valves

2. Common Brass Alloys for Diverter Valve Casting

올바른 선택 놋쇠 alloy is fundamental to the pressure integrity, 부식 저항, 가공 가능성, 치수 안정성, and service life of a diverter valve.

Brass is not a single material but a broad family of copper-based alloys with substantially different compositions and performance characteristics.

For a precision-cast diverter valve, alloy selection should consider more than mechanical strength.

The manufacturer must also evaluate casting behavior, internal pressure requirements, 유체화학, 탈아연 저항성, machining requirements, 온도, 환경 노출, and regulatory restrictions on alloy constituents.

특히, valves intended for potable water or other regulated fluid-contact applications may require low-lead or lead-free alloys specifically qualified for that service.

그러므로, the “best” brass alloy is application-dependent rather than universal.

Commonly Used Brass Alloys for Diverter Valve Casting

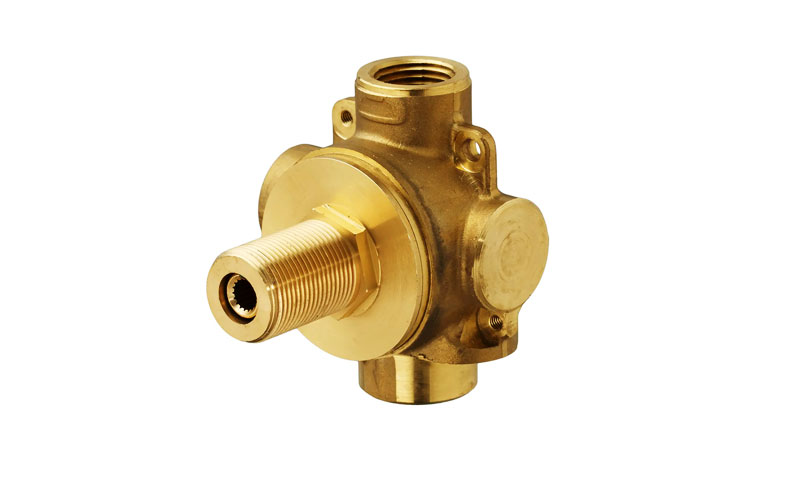

3. Brass Diverter Valve Lost Wax Casting Process

그만큼 잃어버린 왁스 주조 공정 for brass diverter valves is designed to convert a complex valve-body geometry into a near-net-shape metal casting with controlled dimensional consistency and sound structural integrity.

CAD Review and Tooling

The process begins with the valve drawing or 3D CAD model. Before tooling is produced, the geometry is reviewed for casting feasibility and production stability.

The manufacturer establishes the required shrinkage allowance, 가공 여유, 벽 전환, 필렛, 게이팅 위치, and casting orientation.

For a diverter valve, particular attention is given to the regions surrounding intersecting flow passages because sudden changes in section thickness can influence metal feeding and solidification.

The tooling is then manufactured to reproduce the required wax pattern geometry.

왁스 패턴 생산

Molten wax is injected into the precision die to create the sacrificial pattern of the valve body.

Pattern quality determines the dimensional foundation of the casting. Injection temperature, 압력, 유지 시간, 냉각, and die condition must be controlled to minimize flash, 왜곡, 불완전한 충전, and dimensional variation.

The completed wax pattern is inspected before it proceeds to assembly.

Wax Assembly and Gating

Individual wax patterns are connected to a central sprue system to form a casting tree.

이 단계에서, the gating system is established so that molten brass can fill the valve cavity in a controlled manner.

Gate position and runner dimensions influence filling time, 난류, 열 구배, 그리고 먹이를 먹는 행동.

For complex diverter valves, gating is designed around the entire body geometry, rather than simply maximizing filling speed.

세라믹 쉘 빌딩

The wax tree is repeatedly dipped into ceramic slurry and coated with refractory stucco. Successive layers build a rigid ceramic shell around the pattern.

The shell must provide sufficient strength for dewaxing and metal pouring while reproducing the required surface detail.

The primary process controls are:

슬러리 점도 + refractory particle size + layer thickness + 건조 조건 + 껍질 강도

Inconsistent shell preparation can lead to cracking, 치수 변화, 표면 품질이 좋지 않음, or shell failure during pouring.

탈 왁스 및 쉘 발사

The ceramic shell is heated to remove the wax pattern and create the negative cavity of the valve body.

탈 왁스 후, the shell is fired to remove residual organic material and develop the required refractory strength and thermal stability.

The resulting ceramic mold must be clean, 마른, and structurally sound before molten brass is introduced.

Brass Melting and Alloy Control

The selected brass alloy is melted under controlled conditions.

The key objective is to ensure that the molten metal meets the specified chemical composition and cleanliness requirements 쏟아지기 전에.

This is particularly important for custom valves where material properties and regulatory requirements may depend on a specific alloy grade.

Process control typically includes:

• Verified charge materials
• Melt-temperature monitoring
• 화학 분석
• Slag and oxide control
• Heat identification and traceability

제어된 주입

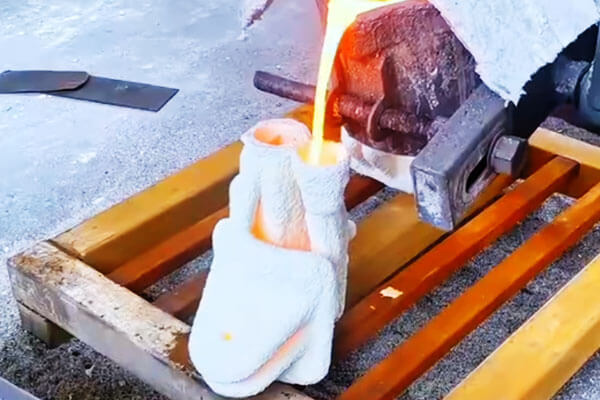

The preheated ceramic shell is filled with molten brass through the designed gating system.

Pouring temperature and filling rate must be matched to the alloy and valve geometry.

The metal must remain sufficiently fluid to fill thin sections and complex passages without excessive turbulence or premature solidification.

A well-controlled pouring operation seeks to achieve:

Complete filling + stable flow + minimum entrainment + controlled thermal conditions

Solidification and Feeding

충전 후, the brass begins to solidify. Because the valve body may contain different wall thicknesses, 보스, and passage intersections, different areas can cool at different rates.

The casting design therefore has to support controlled solidification and adequate feeding of shrinking metal.

Poor solidification control can produce defects such as:

• 수축 다공성
• 수축 공동
• Gas-related discontinuities
• 뜨거운 크래킹

For complex valve bodies, casting simulation can be used to predict filling and solidification behavior and optimize the gating and feeding system before production.

녹아웃

Once the casting has cooled sufficiently, 세라믹 껍질이 기계적으로 제거됩니다..

진동, mechanical separation, or other suitable methods may be used depending on the component and production system.

Care must be taken during knockout because excessive mechanical force can damage thin sections, port features, or cast surfaces.

Gate and Riser Removal

The sprue, 주자, 게이트, and risers are cut from the valve casting.

The cut locations are selected so that removal does not damage functional areas or leave excessive material that would complicate subsequent machining.

This stage converts the investment-cast tree into an individual valve-body casting.

Casting Finishing

The cleaned casting is subjected to grinding, 폭파, or other appropriate finishing operations to remove residual ceramic, 지느러미, 플래시, and gate remnants.

The objective is to produce a clean and stable casting suitable for inspection and subsequent machining.

중요하게, finishing should not be used to conceal unacceptable casting discontinuities. Areas that will become pressure boundaries, 밀봉 표면, or critical machining datums require particular attention.

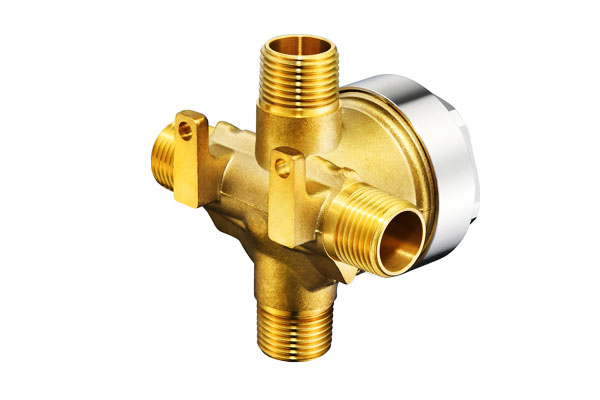

4. CNC Machining of Brass Diverter Valve Castings

Lost wax casting establishes the main geometry of a brass diverter valve, but it normally does not provide the final accuracy required for critical interfaces.

CNC 가공 is therefore the bridge between a near-net-shape casting and a functional precision valve.

The machining process must not only achieve individual dimensions; it must maintain the geometric relationship between ports, 흐름 통로, 밸브 시트, 밀봉 표면, 줄기, and actuator interfaces.

A typical production sequence is:

Casting Inspection → Datum Establishment → Rough Machining → Bore/Port Machining → Thread Machining → Seat and Seal-Groove Machining → Actuator Interface Machining → Deburring → Dimensional Inspection

The exact sequence depends on valve architecture.

Machining the Valve Ports and Internal Bores

The inlet and outlet ports establish the valve’s connection with the external fluid system. 밸브 디자인에 따라 다름, these interfaces may use:

• NPT or other tapered pipe threads
• BSP or BSPP/BSPT threads
• Metric or custom threads
• Compression interfaces
• Flanged connections
• Brazing or specialized connection geometries

The port-machining operation must control both dimension and position.

A correctly machined thread can still create assembly problems if the port axis is incorrectly positioned relative to the valve body or adjacent ports.

For intersecting internal passages, machining may involve drilling, 지루한, cross-drilling, or a combination of cast and machined features.

The transition between these passages should be examined carefully because excessive abruptness can increase pressure loss and turbulence.

In custom designs, casting can produce the majority of the flow architecture while CNC machining finishes the openings and functional interfaces.

Precision Machining of Valve Seats

The valve seat is among the most critical features of a diverter valve because it forms the interface that limits unwanted fluid leakage.

Seat performance depends on several characteristics working together:

동심성 + Contact geometry + 표면 마감 + Flatness/Roundness + 재료 호환성

A valve seat that meets its nominal diameter but is not concentric with the valve element may produce uneven contact.

비슷하게, an excessively rough surface can interfere with sealing, while an incorrect surface geometry can increase operating torque.

The appropriate seat tolerance and surface finish should therefore be specified according to the particular valve design, sealing element, 압력 등급, and leakage requirement.

Thread Machining

Threads are common on brass diverter valves because they provide compact and economical connections.

CNC machining may be used for both internal and external threads. Critical parameters include:

• Major diameter
• Minor diameter
• Pitch
• Thread profile
• Effective diameter
• Thread depth
• 동심성
• 표면 마감

Thread gauges are often used for production verification, while dimensional inspection can confirm the underlying geometry.

Because brass is relatively machinable, it supports efficient thread production, but the cutting strategy still needs to be matched to the particular alloy.

Some lead-free brass alloys can behave differently from traditional free-machining grades and may require optimized cutting tools and parameters.

O-Ring and Seal-Groove Machining

Where elastomeric seals are used, the O-ring groove is a precision feature rather than a simple recess.

Its dimensions determine seal compression and therefore influence leakage performance. Incorrect groove width, 깊이, corner geometry, or surface condition can cause:

• Insufficient sealing
• Excessive compression
• Seal extrusion
• Assembly difficulty
• Premature seal wear

The machining process must consequently maintain the specified groove geometry while protecting the surrounding sealing surface.

5. Surface Finishing Options for Brass Diverter Valves

For custom valve components, surface finishing should be selected together with the alloy, 가공 공정, 치수 공차, and operating environment.

Not every finishing process is suitable for every surface.

특히, 밸브 시트, 스레드, 씰링 인터페이스, and wetted passages may require tightly controlled finishing conditions to avoid changing their functional dimensions.

기계적 연마

Mechanical polishing uses progressively finer abrasive media to remove machining marks, minor surface irregularities, and casting-related surface imperfections from the brass surface.

Depending on the required appearance, the process can range from basic abrasive finishing to high-gloss polishing.

장점:

• Produces a smooth and attractive brass surface
• Improves visual appearance
• Reduces visible machining and casting marks
• Provides an effective substrate for subsequent plating
• Can improve surface uniformity on external valve surfaces

니켈 도금

Nickel plating deposits a controlled nickel layer onto the prepared brass surface, typically through an electroplating process.

Proper pretreatment is essential to ensure good adhesion between the brass substrate and the coating.

장점:

• 부식 저항을 향상시킵니다
• Provides greater surface hardness than untreated brass
• 내마모성을 향상시킵니다
• Produces a uniform metallic appearance
• Suitable for components exposed to moisture and handling
• Can provide a base layer for decorative or functional finishing systems

크롬 도금

Chrome plating applies a chromium-based surface layer over a suitably prepared substrate, often over nickel plating.

The process produces a hard, bright surface with good resistance to wear and tarnishing.

장점:

• Excellent decorative appearance
• High surface hardness
• 좋은 내마모성
• Good resistance to tarnishing and atmospheric exposure
• Suitable for exposed valve components and decorative plumbing hardware

전기 니켈 도금

Electroless nickel plating deposits a nickel-phosphorus or related nickel alloy coating through an autocatalytic chemical reaction rather than relying on direct external electrical current.

This enables relatively uniform coating thickness across complex geometries.

장점:

• More uniform coating thickness on complex surfaces
• 좋은 부식 저항
• 좋은 마모 및 내마모성
• Suitable for recessed and irregular geometries
• Provides controlled surface protection with relatively predictable dimensional buildup
• Useful for industrial valve components requiring both protection and dimensional consistency

Precision Machined Surface Finish

For functional surfaces such as valve seats, 구멍, 스레드, 및 밀봉 인터페이스, the required finish is often produced directly through controlled CNC machining, fine turning, 지루한, 연마, or other precision operations rather than through a decorative coating.

장점:

• Maintains precise dimensional control
• Enables accurate sealing geometry
• Supports controlled surface roughness
• Avoids unnecessary coating buildup on critical interfaces
• Provides predictable assembly and functional performance
• Particularly suitable for valve seats, 구멍, 스레드, and seal-contact surfaces

6. Advantages of Lost Wax Casting for Brass Diverter Valves

Lost wax casting delivers unique advantages for diverter valve manufacturing that cannot be matched by alternative casting or forming methods.

Unmatched Dimensional Accuracy & 반복성

Investment casting achieves ±0.05–0.1 mm per 25 mm as-cast tolerance, with consistent repeatability across high production volumes.

This reduces machining stock, minimizes tolerance stack-up, and ensures interchangeable assembly.

Complex Internal Geometry & Flow Optimization

Lost wax can produce intricate internal port geometries, smooth flow transitions, and contoured passages that would be impossible with sand casting or uneconomical to machine.

Optimized internal flow paths reduce turbulence, 압력 강하, and flow noise.

Superior As-Cast Surface Finish

The fine ceramic face coat produces Ra 1.6–3.2 μm as-cast surface finish, reducing machining time and improving sealing surface performance.

Smooth cast surfaces also reduce flow-induced erosion inside fluid passages.

Minimal Machining Stock & 재료 효율성

Near-net-shape casting requires only 0.8–1.5 mm of machining stock per side, compared to 3–6 mm for sand casting.

This reduces material waste by 40–60% and cuts machining time significantly.

합금 유연성 & Custom Formulation

Lost wax casting works with virtually any brass alloy, allowing custom alloy formulation to match specific corrosion, 힘, or regulatory requirements without major tooling changes.

Consistent Pressure Integrity & Leak Resistance

Single-piece cast bodies eliminate assembled joint leak paths. Controlled solidification minimizes internal porosity, ensuring pressure-tight performance that passes 1.5x working pressure leak testing.

7. Lost Wax Casting vs. Forged Brass Diverter Valves

Both casting and forging produce brass valve components, but they serve distinct design and performance scenarios.

8. Applications of Brass Diverter Valves

Plumbing and Water Distribution

Brass diverter valves are widely used in plumbing systems to redirect water between different outlets, 회로, or fixtures.

Their compact design, 부식 저항, and good machinability make them suitable for both residential and commercial water-control equipment.

일반적인 응용 프로그램에는 포함됩니다:

• Shower systems
• Faucet assemblies
• Water distribution equipment
• Mixing and routing systems
• Household plumbing equipment

HVAC and Heating Systems

Brass diverter valves are commonly used in HVAC and hydronic heating systems to control the direction of circulating water and other compatible fluids.

The valve can switch flow between heating circuits, bypass lines, or secondary loops.

일반적인 응용 프로그램에는 포함됩니다:

• Radiator heating systems
• Underfloor heating systems
• HVAC circulation circuits
• Heat pump systems
• Boiler and heating equipment

관개 시스템

In irrigation equipment, brass diverter valves can be used to direct water between different branches or zones.

Their corrosion resistance and robust construction make them suitable for repeated flow switching in outdoor environments.

일반적인 응용 프로그램에는 포함됩니다:

• Agricultural irrigation systems
• Garden irrigation equipment
• 스프링클러 시스템
• Greenhouse irrigation
• Water distribution manifolds

Water Treatment Equipment

Brass diverter valves can be integrated into compact water-treatment systems where different flow paths need to be selected or isolated.

Precision casting is particularly useful when the valve body requires customized internal passages.

일반적인 응용 프로그램에는 포함됩니다:

• Water filtration systems
• Water purification equipment
• Softening systems
• Pump and filtration assemblies
• Water-treatment control units

Appliances and Residential Equipment

Compact brass diverter valves are also used in appliances where water or another compatible fluid must be redirected between different internal circuits.

일반적인 응용 프로그램에는 포함됩니다:

• Coffee and beverage equipment
• Washing appliances
• 온수기
• Cleaning equipment
• Residential water-control devices

Industrial Fluid-Control Equipment

Industrial equipment may use brass diverter valves for routing water, 기름, 공기, or other compatible fluids where the pressure, 온도, and chemical environment are within the material and valve design limits.

일반적인 응용 프로그램에는 포함됩니다:

• Pump systems
• Compressors and auxiliary equipment
• Fluid-processing machinery
• 산업용 냉각 시스템
• Customized equipment assemblies

Commercial and Specialized Systems

Custom brass diverter valves are also suitable for equipment manufacturers that require a compact multi-port flow-control component designed around a specific assembly or fluid circuit.

일반적인 응용 프로그램에는 포함됩니다:

• Commercial plumbing equipment
• Water circulation systems
• Equipment manifolds
• OEM fluid-control assemblies
• Custom machinery and process equipment

9. Why Choose LangHe Industry for Brass Diverter Valve Lost Wax Casting & 가공?

For custom brass diverter valves, selecting a manufacturer is not simply a matter of finding a supplier that can cast brass.

The final component depends on the coordination of casting engineering, 합금 선택, CNC 가공, 표면 마감, 치수 제어, and functional testing.

Langhe Industry approaches custom brass diverter valve production as an integrated manufacturing project, allowing the casting and machining stages to be developed together around the customer’s functional requirements.

10. 결론

A brass diverter valve is a compact component, but its manufacturing requirements are highly interconnected.

The valve body must contain pressure, provide accurate flow paths, accommodate the internal valve element, maintain sealing interfaces, and connect reliably with external piping or equipment.

For complex custom designs, lost wax casting provides an efficient way to establish the main valve-body geometry, including customized ports, 보스, 전환, and suitable internal architecture.

CNC machining then brings threads, 구멍, 밸브 시트, seal grooves, and actuator interfaces to the required precision.

Material selection is equally important. Different brass alloys offer different combinations of castability, 가공 가능성, 기계적 강도, 부식 저항, and regulatory suitability.

The correct choice must therefore be based on the actual fluid and operating environment.

LangHe Industry combines brass precision casting and CNC machining to support customized diverter valve production from initial design review through finished-component inspection, helping OEM customers convert complex valve concepts into manufacturable and repeatable products.



FAQ

What is a brass diverter valve?

A brass diverter valve is a multi-port fluid-control device used to redirect or selectively distribute fluid between different flow paths.

Its internal valve element determines which ports are connected in each operating position.

Why is brass commonly used for diverter valves?

Brass provides a useful combination of corrosion resistance, 가공 가능성, 기계적 강도, 주파수, 비용 효율성.

These properties make it suitable for many water, HVAC, 연관, 기구, and industrial fluid-control applications.

Why use lost wax casting for a brass diverter valve?

Lost wax casting is particularly useful when the valve body contains complex geometry, multiple ports, 통합 보스, or customized flow passages.

It produces a near-net-shape body that can subsequently be CNC machined.

Can brass diverter valves be used for potable water?

그들은 수 있습니다, provided the complete valve construction meets the applicable requirements for potable-water service.

The brass alloy, lead content, wetted components, 제조 공정, and required product compliance all need to be considered.
