1. Introduksjon

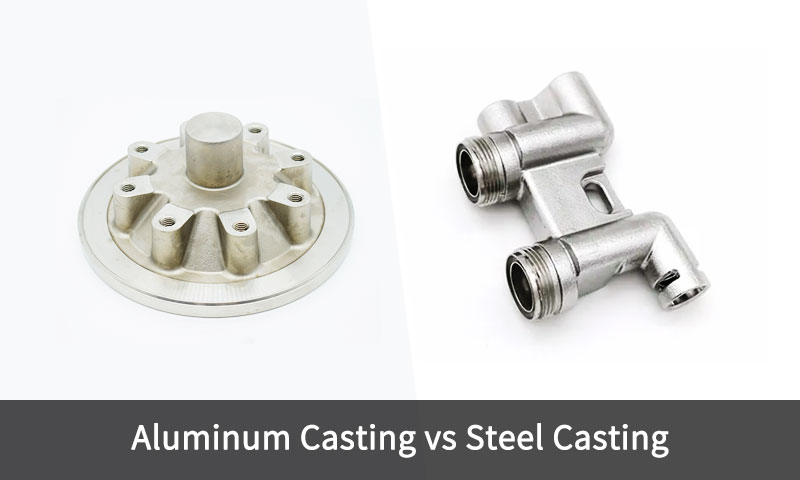

Aluminum vs Steel Casting — choosing between these two foundational materials shapes component performance, cost and manufacturability across industries from automotive to energy.
This comparison is not merely about metal chemistry: it encompasses density and stiffness, termisk oppførsel, casting process compatibility, secondary processing (varmebehandling, overflateteknikk), lifecycle cost and application-specific reliability.
Engineers and purchasers must therefore evaluate the entire system—loading, temperatur, environment, production volume and finish requirements—before specifying a metal and casting route.
2. Fundamental Material Differences Between Aluminum vs Steel
At the core of aluminum vs. steel casting lies a fundamental metallurgical and physical contrast that directly affects how each material behaves during casting, maskinering, og service.
| Eiendom | Aluminium (F.eks., Al-i allays) | Stål (F.eks., carbon or low-alloy steels) | Ingeniørkonsekvenser |
| Tetthet (g/cm³) | 2.70 | 7.85 | Aluminum is ~65% lighter, offering major weight savings for transportation and aerospace. |
| Smeltepunkt (° C.) | 615–660 | 1425–1540 | Aluminum’s low melting point enables easier casting and lower energy consumption; steel requires specialized furnaces. |
| Termisk konduktivitet (W/m · k) | 120–180 | 40–60 | Aluminum dissipates heat efficiently—ideal for engines, Varmevekslere, og elektronikk. |
| Spesifikk styrke (MPa/ρ) | ~100–150 | ~70–90 | Despite lower absolute strength, aluminum’s strength-to-weight ratio surpasses that of steel. |
| Elastisk modul (GPA) | 70 | 200 | Steel is stiffer, providing better rigidity under load and vibration. |
Korrosjonsmotstand |
Glimrende (forms Al₂O₃ layer) | Variabel; prone to rust without coatings | Aluminum resists oxidation naturally, while steel needs surface protection (maleri, platting, or alloying with Cr/Ni). |
| Maskinbarhet | Glimrende | Moderate to difficult | Aluminum’s softness allows easy machining and shorter cycle times; steel requires tougher tooling. |
| Gjenvinning | >90% recoverable | >90% recoverable | Both materials are highly recyclable, though aluminum’s remelting requires less energy (5% of primary production). |
| Casting Shrinkage (%) | 1.3–1.6 | 2.0–2.6 | Steel shrinks more during solidification, demanding larger allowances and more complex gating/feeding systems. |
| Koste (ca., USD/kg) | 2.0–3.0 | 0.8–1.5 | Aluminum is more expensive per kilogram, but savings in weight and processing can offset total lifecycle costs. |
3. What Is Aluminum Casting?
Aluminium støping is the process of shaping molten aluminum or aluminum alloys into complex, near-net-shape components using molds.
It is one of the most widely used metal casting processes globally—accounting for over 50% of all nonferrous castings—due to aluminum’s excellent castability, lav tetthet, og korrosjonsmotstand.
Oversikt
In aluminum casting, smeltet aluminium (vanligvis mellom 680–750°C) is poured or injected into a mold cavity where it solidifies into the desired geometry.
Aluminum’s low melting point and high fluidity make it ideal for both mass-production methods (like die casting) og applikasjoner med høy presisjon (like investment casting).
Key Features of Aluminum Casting
- Lett og høy styrke-til-vekt-forhold:
Aluminum castings offer excellent mechanical performance while being about en tredjedel vekten av stål. - God korrosjonsmotstand:
En tynn, Selvheling aluminum oxide layer (Al₂o₃) protects against oxidation and most atmospheric or marine corrosion. - Utmerket termisk og elektrisk ledningsevne:
Suitable for applications like Varmevekslere, hus, and electric components. - Gjenvinning:
Aluminum can be recycled indefinitely without degradation, reducing production energy by up to 95% compared to primary smelting.
Common Aluminum Casting Processes
| Støpemetode | Beskrivelse | Typiske applikasjoner |

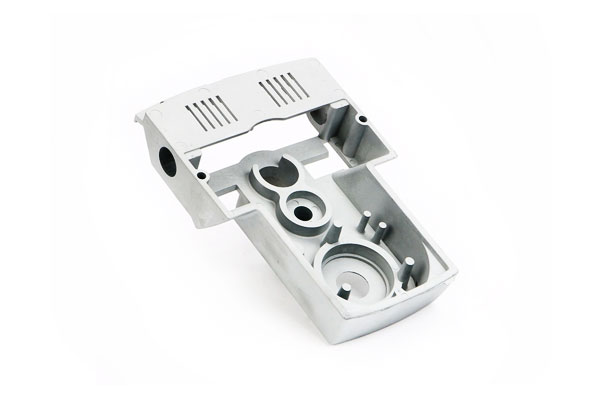

| Die Casting | High-pressure injection of molten aluminum into steel dies; yields precise, tynnveggede deler. | Bildeler (girhus, parentes), Forbrukerelektronikk. |
| Sandstøping | Molten metal poured into sand molds; suitable for larger, lower-volume parts. | Motorblokker, manifolder, romfartshus. |
| Investering Casting | Ceramic molds from wax patterns; ideal for fine details and tight tolerances. | Luftfartsturbinkomponenter, medisinsk utstyr. |
| Permanent muggstøping | Reusable metal molds; good surface finish and dimensional control. | Stempler, Hjul, og marine komponenter. |
| Sentrifugalstøping | Uses centrifugal force to distribute molten metal; tett, defektfri struktur. | Rør, ermer, and rings. |
Fordeler med støping av aluminium
- Lett: Reduces component weight by 30–50% vs. stål, improving fuel efficiency (bil) or payload capacity (luftfart).
- Energieffektivitet: Melting aluminum requires 60–70% less energy than steel (570° C vs.. 1420° C.), lowering processing costs by 20–30%.
- Korrosjonsmotstand: Eliminates the need for coatings (F.eks., maling, galvanisering) i de fleste miljøer, reducing maintenance costs by 40–50%.
- High-Volume Viability: Die casting enables production of 1000+ parts/day per machine, meeting consumer goods demand.
Disadvantages of Aluminum Casting
- Lavere styrke: Strekkfasthet (150–400 MPa) is 50–70% lower than high-strength steel, limiting use in heavy-load applications.
- Poor High-Temperature Performance: Retains only 50% of room-temperature strength at 250°C, making it unsuitable for engine exhaust or power plant components.
- Porøsitetsrisiko: Die-cast aluminum is prone to gas porosity (from high-pressure injection), restricting heat treatment options (F.eks., T6 temper requires vacuum processing).
- Higher Raw Material Cost: Primary aluminum costs $2,500–$3,500/tonne, 2–3x more than carbon steel.
Industrial Applications of Aluminum Casting
Aluminum casting is widely used across multiple industries due to its combination of Lett design, maskinbarhet, og korrosjonsmotstand:
- Automotive: Motorblokker, overføringshus, Hjul, and suspension arms.
- Luftfart: Parentes, strukturelle beslag, kompressorhus.
- Elektronikk: Varmevasker, Motorhus, innhegninger.
- Forbruksvarer: Apparater, elektroverktøy, møbler maskinvare.
- Marine and Renewable Energy: Propeller, hus, og turbinblader.
4. What Is Steel Casting?
Steel casting is the process of pouring molten steel into a mold to produce complex, high-strength components that cannot be easily fabricated or forged.
Unlike aluminum, steel has a Høyere smeltepunkt (≈ 1450–1530°C) and greater tensile strength, gjør det ideelt for load-bearing and high-temperature applications such as machinery, infrastructure, og kraftproduksjon.
Oversikt
In steel casting, carefully alloyed molten steel is poured into either expendable (sand, investering) or permanent molds, where it solidifies into a shape close to the final part.
Because steel shrinks significantly upon cooling, precise temperature control, GATING DESIGN, and solidification modeling er kritiske.
Steel castings are known for their Mekanisk robusthet, Effektmotstand, og strukturell integritet, particularly under harsh service conditions.
Key Features of Steel Casting
- Exceptional Strength and Toughness:
Yield strengths often exceed 350 MPA, with heat-treated alloys reaching over 1000 MPA. - High-Temperature Capability:
Retains strength and oxidation resistance up to 600–800°C, depending on composition. - Versatile Alloy Selection:
Includes karbonstål, Lavlegeringsstål, rustfrie stål, and high-manganese steels, each tailored for specific environments. - Sveisbarhet og maskinbarhet:
Cast steels can be post-processed effectively—machined, sveiset, and heat-treated to enhance performance.
Common Steel Casting Processes
| Støpemetode | Beskrivelse | Typiske applikasjoner |
| Sandstøping | Molten steel poured into bonded sand molds; Ideell for stort, komplekse deler. | Ventillegemer, Pumpekabinetter, machinery housings. |

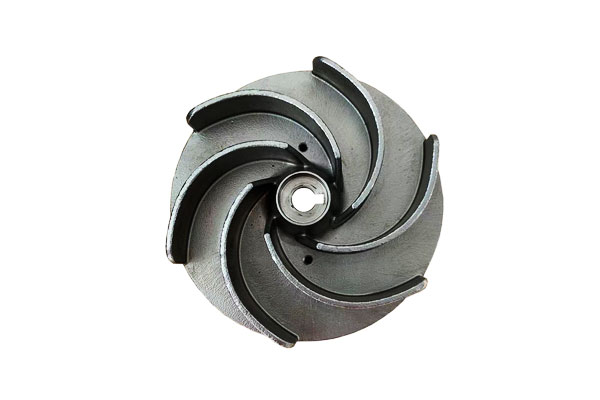

| Investering Casting | Ceramic molds formed from wax patterns; yields excellent accuracy and surface finish. | Turbinblad, Kirurgiske verktøy, Luftfartsdeler. |
| Sentrifugalstøping | Rotational force distributes molten steel evenly; produces dense cylindrical components. | Rør, foringer, bærende løp. |
| Shell Mold støpe | Uses thin resin-coated sand molds; allows higher precision and smoother surfaces. | Små motordeler, parentes. |
| Kontinuerlig støping | For semi-finished steel products like slabs and billets. | Raw material for rolling and forging. |
Advantages of Steel Casting
- Superior Strength & Seighet: Strekkfasthet (opp til 1500 MPA) og påvirke seighet (40–100 J) make it irreplaceable for structural safety (F.eks., brokomponenter, Automotive chassis).
- Ytelse med høy temperatur: Operates reliably at 400–600 ° C. (vs. aluminum’s 250°C limit), suitable for jet engine casings and power plant boilers.
- Low Raw Material Cost: Carbon steel costs $800–$1200/tonne, 60–70% less than primary aluminum.
- Bruk motstand: Heat-treated steel (F.eks., 4140) has surface hardness up to 500 Hb, reducing replacement frequency in abrasive applications by 50–70%.
Disadvantages of Steel Casting
- High Weight: Density 2.7x that of aluminum increases fuel consumption (bil) or structural load (bygninger).
- High Energy Use: Melting steel requires 25–30 MWh/tonne (vs. 5–7 MWh/tonne for aluminum), increasing processing costs by 40–50%.
- Korrosjonsmottakelse: Carbon steel rusts in moist environments (korrosjonsrate: 0.5–1,0 mm/år in salt spray), requiring coatings (F.eks., galvanisering) that add $1.5–$2.5/kg to costs.
- Poor Machinability: Hardness requires specialized tools, Økende maskineringstid av 30–50% vs. aluminium.
Industrial Applications of Steel Casting
Steel castings dominate industries demanding styrke, varighet, og varmebestandighet:
- Konstruksjon & Gruvedrift: Excavator teeth, Knusere deler, track links.
- Energi & Kraftproduksjon: Steam turbine casings, Ventillegemer, kjernefysiske komponenter.
- Olje & Gass: Drill heads, pipeline valves, manifolder.
- Transport: Train couplers, girhus, heavy-duty engine blocks.
- Luftfart & Forsvar: Landingsutstyr, strukturelle beslag, armor components.
5. Omfattende sammenligning: Aluminum vs Steel Casting
Process fit and part geometry
- Tynnvegget, Kompleks, deler med høyt volum: aluminum die casting is optimal (HPDC).
- Stor, tung, load-bearing parts: steel/spheroidal graphite (Dukes) iron and cast steels via sand casting are preferred.
- Medium volume with high integrity requirements: low-pressure aluminum or investment casting steels depending on strength needs.
Mechanical performance & etterbehandling
- Varmebehandling: cast steel can be quenched & tempered to obtain high strength and toughness; aluminum alloys have age-hardening routes but reach lower maximum strengths.
- Surface engineering: aluminum readily anodizes; steel can be nitrided, carburized, induction hardened or coated with hard substances (keramikk, Hard krom).
Kostnadsdrivere (typical considerations)
- Material cost per kg: aluminum raw metal tends to be priced higher per kg than ferrous scrap/steel, but part mass reduces required amount.
- Verktøy: die casting dies are expensive (high initial amortization) but low per-part cost at volumes >10k–100k; sand tooling is cheap but per-part labor higher.
- Maskinering: aluminum machines faster (higher removal rates), lower tool wear; steel requires harder tooling and more machining time—raises total cost especially for small batches.
Produksjon & defect modes
- Porøsitet: HPDC aluminum can develop gas and shrinkage porosity; permanent-mold and low-pressure reduce porosity.
Steel castings can suffer inclusions and segregation; controlled melting and post-HT reduce defects. - Dimensjonal kontroll: die cast aluminum attains tight tolerances (± 0,1–0,3 mm); sand cast steel tolerances are looser (±0.5–2 mm) without post-machining.
Miljø & life-cycle
- Gjenvinning: both metals are highly recyclable. Recycled aluminum uses a small fraction (~5–10%) of the energy of primary smelting; recycled steel also has large energy savings compared to virgin iron.
- Use-phase: lightweight aluminum can reduce fuel consumption in vehicles — a system-level environmental benefit.
Bord: Aluminum vs Steel Casting — Key Technical Comparison
| Kategori | Aluminiumstøping | Steel Casting |
| Tetthet (g/cm³) | ~2.70 | ~7.80 |
| Smeltepunkt (° C. / ° F.) | 660° C. / 1220° F. | 1450–1530°C / 2640–2790°F |
| Styrke (Strekk / Avkastning, MPA) | 130–350 / 70–250 (som støpt); opp til 500 Etter varmebehandling | 400–1200 / 250–1000 (Avhengig av karakter og varmebehandling) |
| Hardhet (Hb) | 30–120 | 120–400 |
| Elastisk modul (GPA) | 70 | 200 |
| Termisk konduktivitet (W/m · k) | 150–230 | 25–60 |
| Elektrisk konduktivitet (% IACS) | 35–60 | 3–10 |
| Korrosjonsmotstand | Glimrende (natural oxide layer) | Variable — requires alloying (Cr, I, Mo) eller belegg |
| Oksidasjonsmotstand (High-Temp) | Begrenset (<250° C.) | Bra til utmerket (up to 800°C for some alloys) |
| Maskinbarhet | Glimrende (myk, easy to cut) | Moderat til dårlig (hardere, Slipende) |
| Støptbarhet (Fluiditet & Krymping) | Høy fluiditet, Lav krymping | Lower fluidity, higher shrinkage — needs precise gating |
| Vektfordel | ~65% lighter than steel | Heavy — suitable for structural loads |
Overflatefinish |
Glatt, good detail reproduction | Rougher surfaces; may need machining or shot blasting |
| Heat Treatment Flexibility | Glimrende (T6, T7 tempers) | Bred (Annealing, slukking, temperering, Normalisering) |
| Gjenvinning | >90% recycled efficiently | >90% recyclable but requires higher remelting energy |
| Production Cost | Lower energy, Raskere syklustider | Higher melting cost and tool wear |
| Typiske toleranser (mm) | ±0.25 to ±0.5 (formstøping); ±1.0 (Sandstøping) | ±0.5–1.5 depending on process |
| Environmental Footprint | Lav (especially recycled aluminum) | Higher CO₂ and energy footprint due to high melting point |
| Typiske applikasjoner | Bilhjul, hus, Luftfartsdeler, forbruksvarer | Ventiler, turbiner, tungt maskiner, strukturelle komponenter |
6. Konklusjon
Aluminum and steel castings solve different engineering problems.
Aluminum excels where Lett vekt, Termisk konduktivitet, surface quality and high production rates matter.
Stål (and cast irons) dominate where høy styrke, stivhet, Bruk motstand, toughness and elevated temperature performance er påkrevd.
Good material selection balances functional requirements, koste (total life cycle), producibility and finishing.
In many modern designs hybrid solutions appear (steel inserts in aluminum castings, clad or bimetallic components) to exploit the strengths of both metals.
Vanlige spørsmål
Som er sterkere: cast aluminum or cast steel?
Cast steel is significantly stronger—A216 WCB steel has a tensile strength of 485 MPA, 67% higher than A356-T6 aluminum (290 MPA).
Steel also has far greater toughness and wear resistance.
Can cast aluminum replace cast steel?
Only in applications where weight reduction is prioritized over strength (F.eks., automotive non-structural parts).
Steel is irreplaceable for high-load, high-temperature components (F.eks., Turbinhus).
Which is more corrosion-resistant: cast aluminum or cast steel?
Cast aluminum is more corrosion-resistant in most environments (korrosjonsrate <0.1 mm/år) vs. karbonstål (0.5–1,0 mm/år).
Stainless steel castings match aluminum’s corrosion resistance but cost 2–3x more.
Which casting process is best for aluminum vs. stål?
Aluminum is ideal for die casting (høyt volum) and sand casting (Lavpris).
Steel is best for sand casting (store deler) og investeringsstøping (Kompleks, high-tolerance components). Die casting is rarely used for steel.
