1. Introduction

Polytetrafluoroethylene (PTFE) is a fully fluorinated, semi-crystalline thermoplastic polymer best known for an exceptionally low coefficient of friction, outstanding chemical inertness, a wide service temperature window, and excellent dielectric properties.

These intrinsic advantages make PTFE the material of choice for seals, bearings, linings, electrical insulation, and chemically aggressive service.

PTFE also has important limitations: low mechanical strength and high cold flow (creep), difficult melt processing (very high melt viscosity), and concerns about decomposition fumes and environmental persistence of fluorinated polymers.

Engineering implementation therefore balances PTFE’s unmatched chemistry/tribology with appropriate fillers, processing methods and design compensation.

2. What is PTFE (Polytetrafluoroethylene)?

Polytetrafluoroethylene (PTFE) is a high-performance fluoropolymer notable for its extremely low friction, excellent chemical inertness, wide usable temperature range, and outstanding electrical insulation.

It is widely known by the DuPont brand name Teflon®, though PTFE is the generic polymer name. PTFE is used where chemical resistance, nonstick properties, or electrical insulation are required.

Common product forms & grades

• Virgin PTFE: Unfilled; best chemical resistance and lowest friction but lowest strength/wear resistance.
• Filled PTFE: Reinforced with glass, carbon, bronze, graphite, MoS₂, or ceramics to improve wear resistance, dimensional stability, thermal conductivity, or electrical characteristics.
• PTFE film & tape: Thin, flexible, often used as gasketing tape, electrical insulation, or for release liners.
• PTFE coatings: Applied as nonstick coatings on cookware or industrial release surfaces (often as PTFE dispersions baked onto substrates).
• Expanded PTFE (ePTFE): A microporous form with high porosity and breathability — used for filtration, medical grafts, and breathable membranes.

3. Key Physical and Thermal Properties of PTFE

Values are typical engineering ranges — consult resin datasheets for design-critical specification.

4. Mechanical and tribological behavior

• Strength & stiffness: PTFE is soft and flexible; tensile strength and modulus are low compared with engineering polymers (e.g., PEEK, PA).
  Designers must allow for large deflections if PTFE is used structurally.
• Creep / cold flow: PTFE exhibits significant viscoelastic and viscous flow under long-term static load (creep). Creep rate increases with temperature and stress.
  This is the single most important design limitation for bearings, seals and load-bearing components.
  Mitigation: increase contact area, decrease stress, use filled PTFE grades (bronze, glass, carbon) or support the PTFE with a metal backing.
• Friction & wear: Friction is exceptionally low. Unfilled PTFE has poor abrasion resistance and high wear under sliding with abrasive particulates.
  Filled PTFE grades (graphite, carbon, bronze) trade slightly higher µ for dramatically improved wear life. Coefficient of friction data: dynamic µ ≈ 0.04–0.10 vs steel.
• Sealing behavior: PTFE’s low friction and chemical inertness make it ideal for static and low-speed dynamic seals, but creep can cause cold-flow-related leakage over time if not properly designed. Spring-energized PTFE seals are common.

5. Electrical and dielectric performance

• Dielectric constant εr ≈ 2.0–2.2 (very low) and very low dielectric loss (tan δ): excellent for high-frequency, RF and microwave insulation.
• Volume resistivity is extremely high, typically >10¹⁸ Ω·cm, giving excellent insulation properties even at elevated humidity.
• Use cases: coaxial cables, high-voltage insulators, printed circuit substrates (PTFE laminates such as PTFE-glass), where low dielectric loss and stable permittivity are required.

6. Chemical resistance and media compatibility

• Outstanding resistance: PTFE is essentially inert to acids, bases, solvents, oxidizers and reducing agents at ambient and moderate temperatures.
  It resists strong acids (sulfuric, nitric), most organics, halogenated solvents and oxidants that attack most polymers.
• Notable exceptions: elemental fluorine at elevated temperature, molten alkali metals (sodium, potassium) and highly reactive species under extreme conditions can attack PTFE.
  Also, at temperatures above decomposition onset (~350–400 °C), PTFE breaks down and produces hazardous fluorinated emissions.
• Permeation: low but measurable for small molecules (gases). For tight barrier requirements, verify permeation rates with intended fluids and temperatures.

7. Processing and Manufacturing Technologies for PTFE

PTFE’s exceptional chemistry and molecular weight make it a specialty polymer to process.

Compression molding & sintering — primary route for solid parts (rings, seals, bearings, rods, plates)

Process outline

1. Powder preparation / paste – PTFE powder is sometimes blended with a volatile processing aid (hydrocarbon or alcohol) to form a paste for extrusion; for compression molding dry powder can be used.
2. Pre-forming / pressing – powder or paste is filled into a mold and is consolidated by cold or warm pressing to the desired green density.
   Typical green densities and packing procedures are set to control final shrinkage and porosity.
3. Sintering – the consolidated green part is heated above the crystalline melt point to fuse polymer particles into a coherent, near-fully-dense solid. Controlled heating, hold and controlled cooling are critical.
4. Optional secondary operations – machining, anneal, or expansion (for ePTFE).

Common defects & mitigations

• Blistering / porosity: usually from entrapped lubricant/solvent or rapid heating → lengthen soak, use proper venting, ensure complete removal of processing aids prior to full temperature.
• Warping / distortion: caused by non-uniform heating or non-uniform green density → uniform tooling, matched punches and controlled ramps.
• Incomplete fusion / weak interparticle bonds: too low sinter temperature or too short hold → raise dwell or temperature within safe limits.

Extrusion (paste extrusion) — tubing, rods and continuous profiles

Why paste extrusion?

PTFE powders cannot be melt-extruded. The commercial route is paste extrusion (powder + lubricant) or ram extrusion of pre-compacted billets. After extrusion, profiles are sintered.

Process steps

1. Formulation: PTFE powder mixed with a volatile lubricant (e.g., aliphatic hydrocarbons) to produce a cohesive paste.
2. Paste extrusion: paste is forced through an extrusion die (screwless ram or plunger extruder) to produce billets, rods, tubes or hollow profiles.
3. Predrying / pre-sinter handling: extruded green profiles are dried to remove surface solvent and stabilize shape.
4. Sinter cycle: consolidated and sintered in continuous or batch ovens to fuse the material and evaporate lubricant.
5. Post-process: sizing, annealing, cooling and cutting to length.

Coating technologies — the largest commercial application (≈60% of PTFE usage)

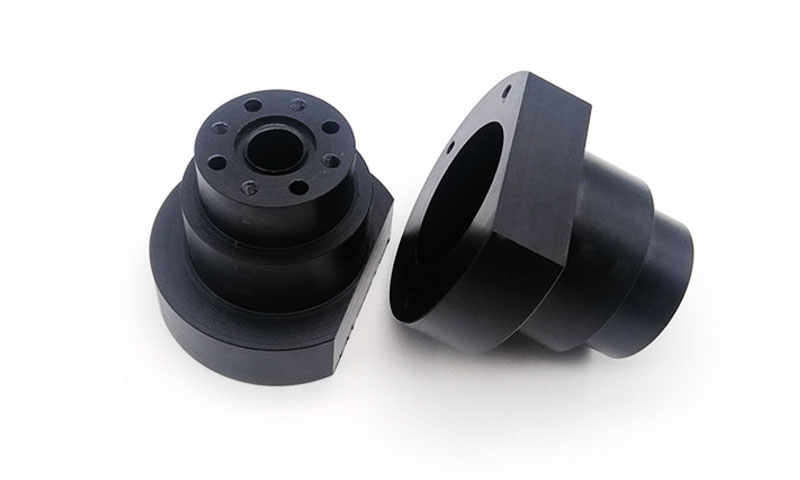

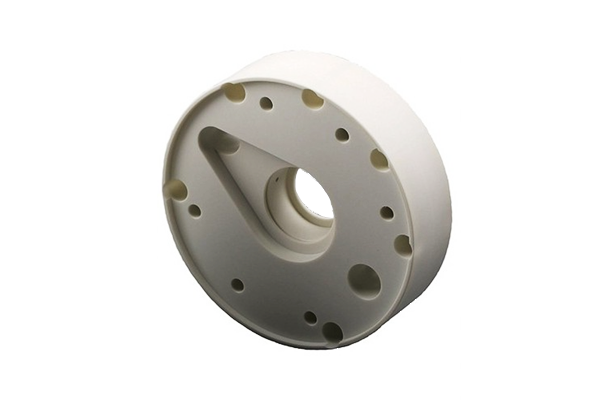

Machining — secondary processing of sintered PTFE (turning, milling, drilling, sawing)

Machinability overview

• Sintered PTFE is relatively easy to machine compared with many engineering plastics (soft, ductile) but requires attention to deformation, chip control and heat generation.
  Filled grades machine differently — fillers increase abrasiveness and tool wear but reduce cold flow and improve dimensional stability.

Dimensional control & post-machining

• Creep relaxation: machined PTFE parts may creep and change dimension under load or over time; consider a post-machine anneal or stress-relief hold to stabilize dimensions for critical tolerances.
• Finish & tolerances: achievable tolerances are typically looser than metallic parts; specify tolerances that account for PTFE’s elastic recovery and thermal sensitivity.
• Tool wear: filled grades (glass, bronze) are abrasive; select tooling and feeds accordingly and schedule tool changes.

Drilling & tapping

• Use sharp drills with parabolic flutes for chip removal. For threads, prefer oversized clearance or use inserts/coating-inserts, and consider helicoils or metal-insert knurled threads for repeated assembly.

8. Filled/modified PTFE grades — why and how they differ

Plain PTFE’s limitations motivate filled grades. Common fillers and their effects:

Tradeoffs: fillers improve load capability, wear life and reduce creep, but typically increase coefficient of friction slightly, may reduce chemical inertness (depending on filler), and complicate recycling.

Fillers also impact electrical properties (conductive fillers alter dielectric behavior).

9. Typical Applications of PTFE

• Seals & gaskets: chemical plant static seals, spring-energized dynamic seals (low friction, chemical resistance).
• Bearings & slide pads: low-speed, low-to-moderate load applications; composite/filled PTFE for improved wear.
• Liners & piping: corrosion-resistant pipe liners, tank linings, valve seats.
• Wire & cable insulation: high-frequency, high-temperature electrical insulation.
• Coatings: non-stick cookware (as PTFE dispersions), protective coatings for chemical equipment.
• ePTFE membranes: filtration, breathable waterproof fabrics, medical grafts/patches.

10. Advantages and Limitations of PTFE

Performance advantages

• Exceptional chemical inertness — resists acids, bases, solvents and oxidizers at ambient and many elevated temperatures.
• Ultra-low surface energy / non-stick — among the lowest of engineering plastics; excellent anti-fouling and release behavior.
• Very low friction — ideal for low-torque bearings, seals and sliding components.
• Wide temperature window — performs from cryogenic temperatures to ≈ 260 °C continuous.
• Excellent dielectric properties — low permittivity and dielectric loss for RF/high-voltage use.
• Hydrophobic and low moisture uptake — stable electrical properties in humid conditions.
• Biocompatible options and ePTFE membranes — used in medical implants and filtration membranes.

Practical limitations

• High creep / cold flow — significant long-term deformation under static load; design must account for this (backing, larger contact area, filled grades).
• Low mechanical stiffness and moderate tensile strength — not a structural substitute for metals or high-performance thermoplastics.
• Poor abrasion resistance (virgin) — unfilled PTFE wears quickly under abrasive sliding; filled variants improve wear life.
• Processing and joining constraints — cannot be injection-molded in the usual way; requires paste/ram extrusion, compression molding and sintering; surface energy makes adhesion difficult without special pre-treatment.
• Thermal decomposition risk — overheating (≥350–400 °C) produces toxic fluorinated fumes; manufacturing requires ventilation and controls.
• Environmental/regulatory considerations — PTFE is a persistent fluoropolymer; historical process aids (PFOA) have been phased out but PFAS regulatory attention remains relevant.

11. Failure modes, hazards, and safety considerations

• Creep/creep rupture: long-term deformation under static load. Mitigation: structural support, fillers, lower operating temperatures.
• Mechanical wear / abrasion: high under abrasive particles; choose filled grades or sacrificial liners.
• Thermal decomposition: overheating PTFE (>350–400 °C) produces toxic fluorinated pyrolysis products (polymer fume fever in humans; lethal to birds at low concentrations).
  Ensure thermal limits and ventilation in sintering/processing.
• Bonding failures: PTFE surface energy makes adhesives ineffective without special pretreatment. Use mechanical fastening or specialized surface activation (plasma, chemical etch) plus compatible primers.

Processing safety: during sintering or any overheat event, control ventilation and use gas detection for decomposition species in manufacturing areas. Provide PPE and prohibit birds in facilities.

12. Environmental and regulatory context

• Persistence: PTFE is chemically stable and persistent in the environment (a subset of the PFAS family).
  End-of-life management and recycling are challenging; source reduction and reuse are common strategies.
• Manufacturing footprint: historical use of PFOA (perfluorooctanoic acid) as a processing aid has been phased out in many jurisdictions; modern production uses alternative chemistries.
  Verify supplier declarations concerning unintentional byproducts and residuals.
• Regulatory: PTFE itself is often approved for food contact and medical applications (ask for compliance certificates, e.g., FDA).
  Regulatory attention on PFAS may affect future processing and disposal requirements.

13. Material selection guidance — PTFE vs Alternatives

14. Conclusion

PTFE is the benchmark material when chemical inertness, ultra-low friction, and excellent dielectric stability are required.

Its processing idiosyncrasies and mechanical limitations do not undermine its value; they simply demand that engineers choose the right grade (filled or unfilled),

the right manufacturing route (paste, sinter, expansion, dispersion), and the right geometry (backing, thickness, support) for a given service.

Safety and environmental aspects (thermal decomposition, PFAS context) must also be part of responsible material selection and manufacturing planning.



FAQs

What maximum temperature can PTFE handle continuously?

Typically ≈ 260 °C continuous; avoid sustained exposure above 260–280 °C and prevent temperatures ≥350–400 °C where decomposition accelerates.

Can I injection-mold PTFE parts?

No — PTFE cannot be melt-injection molded in the usual way. Use paste/ram extrusion, compression molding and sintering, or consider melt-processable fluoropolymers (FEP, PFA) for injection molding.

Is PTFE safe for food contact?

Virgin PTFE is commonly approved for food contact applications; check supplier certification for FDA/EC compliance for specific grades and manufacturing residues.

How do I bond PTFE to metal?

Surface activation is required (plasma, chemical etch such as sodium naphthalide in specialized labs, or proprietary primers).

Mechanical fastening and overmolding with compatible polymers are common practical alternatives.

Are filled PTFE grades a cure for all limitations?

Fillers substantially improve wear, reduce creep and increase thermal conductivity, but they also change chemical behavior, friction, and cost. Select filler type based on specific service tradeoffs.
