1. Introduction

Rapid prototyping is a cornerstone of modern product development, allowing designers and engineers to test, iterate, and refine parts in a fraction of the time required by traditional manufacturing methods.

While plastics and aluminum dominate early-stage design due to cost and ease of use, stainless steel rapid prototyping is gaining ground for applications that demand high strength, thermal stability, corrosion resistance, and real-world functionality.

As product development cycles shorten across industries—particularly in aerospace, medical, automotive, and robotics—stainless steel enables functional prototyping, not just visual models.

It offers durability for form-fit-function testing and can often transition directly into low-volume production.

2. What Is Stainless Steel Rapid Prototyping?

Stainless steel rapid prototyping refers to the fast production of physical prototypes using stainless steel alloys through additive (e.g., 3D printing) and subtractive (e.g., CNC machining) processes.

Unlike traditional long-cycle manufacturing, rapid prototyping aims to accelerate product development by enabling fast iteration, functional testing, and pre-production evaluation.

While many prototypes are made from plastic or aluminum due to lower costs and ease of processing, stainless steel is increasingly chosen when prototypes need to simulate the final product’s performance in terms of mechanical strength, heat resistance, and corrosion resistance.

Common Stainless Steel Grades Used in Prototyping

• 304: Most widely used stainless steel; good formability and corrosion resistance.
• 316/316L: Better resistance to chemicals and chlorides; ideal for marine and medical applications.
• 17-4PH: Precipitation-hardening stainless steel offering high strength and moderate corrosion resistance; can be heat-treated to improve mechanical properties.
• 15-5PH: Similar to 17-4PH, with better toughness and ductility, often used in aerospace and structural applications.

3. Stainless Steel Rapid Prototyping Methods

Stainless steel rapid prototyping encompasses several advanced manufacturing techniques, each offering unique advantages depending on the part’s geometry, application, tolerance requirements, and production volume.

The most common methods include CNC machining, metal 3D printing, investment casting, and sheet metal fabrication.

CNC Machining

CNC (Computer Numerical Control) machining is a subtractive manufacturing process that uses computer-controlled cutting tools to remove material from a stainless steel block.

Key Features:

• High precision: Tolerances of ±0.005 mm or better
• Excellent surface finish: Ra 0.4 μm achievable
• Best for functional and structural prototypes

Advantages:

• Suitable for both simple and complex geometries
• Wide material availability (304, 316, 17-4PH)
• Ideal for parts that require threading, boring, or tight tolerances

Typical Lead Time: 3–7 business days

Metal 3D Printing (DMLS / SLM)

Direct Metal Laser Sintering (DMLS) and Selective Laser Melting (SLM) are additive manufacturing techniques that build parts layer by layer using stainless steel powders.

Key Features:

• Enables complex, organic shapes, including internal channels
• No need for tooling or molds
• High material utilization (less waste)

Common Stainless Steels Used:

• 316L: Corrosion resistance and biocompatibility
• 17-4PH: High strength and heat treatable

Advantages:

• Design freedom for lattice structures and weight optimization
• Excellent for prototyping in aerospace, medical, and research sectors

Limitations:

• Rougher surface finish (Ra 6–12 μm) unless post-processed
• Cost-effective mostly for low-volume or complex parts

Typical Lead Time: 2–5 business days

Investment Casting (Lost Wax Casting)

This process involves creating a wax model of the part, coating it with a ceramic shell, and then replacing the wax with molten stainless steel to form the final shape.

Key Features:

• Suitable for detailed and intricate parts
• Supports medium to low volume production
• Good dimensional accuracy and surface finish

Advantages:

• Capable of producing parts with thin walls and undercuts
• Offers better mechanical properties than 3D printing

Common Alloys: 304, 316, 17-4PH, CF8M, and other castable stainless steels

Limitations:

• Longer lead time due to mold preparation
• Less suitable for quick iterations

Typical Lead Time: 7–10+ business days

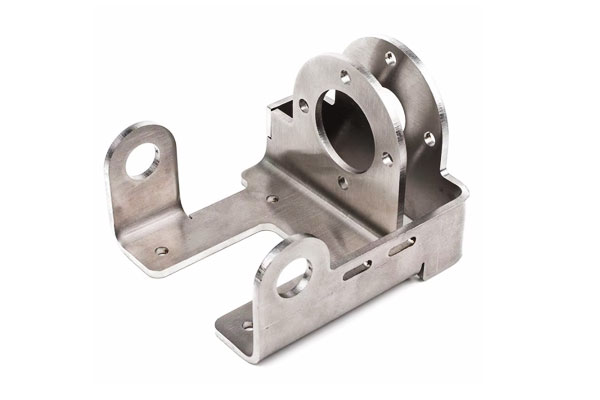

Sheet Metal Fabrication

Sheet metal prototyping involves cutting, bending, and assembling stainless steel sheets to create flat or semi-flat components.

Key Features:

• Efficient for 2D and 2.5D parts
• Used for enclosures, brackets, panels, and casings

Processes Involved:

• Laser cutting
• Waterjet cutting
• CNC bending
• Spot welding and TIG welding

Advantages:

• Fast and cost-effective for thin-walled parts
• Material savings compared to subtractive methods

Typical Lead Time: 3–5 business days

4. Design Considerations for Stainless Steel Rapid Prototyping

Designing for stainless steel rapid prototyping requires a strategic approach to balance material characteristics, process capabilities, and functional objectives.

Wall Thickness and Feature Size

• CNC Machining:

• • Minimum wall thickness: ≥ 0.8–1.0 mm (depending on part size)
  • Deep cavities (>3× diameter) may require special tooling

• Metal 3D Printing (e.g., DMLS/SLM):

• • Minimum wall thickness: ≥ 0.5 mm for structural integrity
  • Small features: avoid unsupported structures <0.3 mm

• Investment Casting:

• • Wall thickness typically ≥ 1.5–2.0 mm for reliable mold filling

• Sheet Metal:

• • Thickness depends on gauge; common ranges for stainless steel: 0.5–3 mm

Design Tip: Avoid sharp internal corners—use fillets to reduce stress concentration and facilitate machining or printing.

Tolerances

• CNC Machining:

• • Tight tolerances achievable: ±0.005–0.01 mm for precision parts

• Metal 3D Printing:

• • Typical tolerances: ±0.05–0.1 mm; improved with post-machining

• Casting:

• • Standard tolerances: ±0.2–0.5 mm depending on part size and complexity

• Sheet Metal:

• • Tolerance depends on cutting and bending process: typically ±0.1–0.3 mm

Design Tip: Include post-processing allowances if precision finishing (e.g., polishing or machining) is required after printing or casting.

Design for Manufacturability (DFM)

Each process imposes specific manufacturing constraints:

• CNC Machining:

• • Avoid deep, narrow cavities unless necessary
  • Ensure tool access and clearance

• 3D Printing:

• • Optimize for minimal support structures (especially overhangs >45°)
  • Consider print orientation to reduce warping and improve strength

• Casting:

• • Include proper draft angles (typically 1–3°) to facilitate mold release
  • Avoid isolated thin walls that may cool too quickly and cause defects

• Sheet Metal:

• • Maintain consistent bend radii
  • Minimize complex bends or formed features in a single part

Surface Roughness Expectations

5. Post-Processing and Finishing Options for Stainless Steel Rapid Prototyping

Post-processing is a critical step in stainless steel rapid prototyping. It enhances the mechanical properties, surface quality, appearance, and corrosion resistance of the final part.

Machining and Surface Refinement

• Secondary Machining
  Used to achieve tight tolerances or refine critical dimensions, especially in 3D printed or cast parts. Common operations include drilling, turning, and milling.
• Grinding
  Ideal for achieving precise flatness and smooth surface finishes (Ra ≤ 0.4 µm), commonly used for tooling or bearing surfaces.

Heat Treatment

Heat treatment can enhance the strength, hardness, or corrosion resistance of certain stainless steel grades.

• 17-4PH Stainless Steel

• • Can be precipitation hardened to increase strength up to ~1100 MPa tensile strength
  • Age hardening cycles: H900, H1025, H1150 (number indicates temperature in °F)

• Annealing (for austenitic grades like 304 or 316):

• • Removes internal stresses
  • Improves ductility and corrosion resistance

Note: Heat treatment must be carefully controlled to prevent warping or scale formation.

Surface Treatments

• Passivation

• • Chemical process (usually with nitric or citric acid) that removes free iron from the surface
  • Enhances corrosion resistance by promoting the formation of a chromium oxide layer
  • Standard for medical, food-grade, and marine components

• Electropolishing

• • Electrochemical process that smooths and brightens surfaces
  • Reduces surface roughness by ~50%
  • Excellent for biomedical and cleanroom applications

• Blasting

• • Sandblasting or glass bead blasting is used to achieve a uniform matte or satin finish
  • Removes surface imperfections and minor burrs

• Tumbling / Vibratory Finishing

• • Efficient for small or batch parts
  • Produces deburred, polished surfaces with minimal labor

Coatings and Plating

Although stainless steel is naturally corrosion-resistant, certain applications may require additional coatings:

• PVD (Physical Vapor Deposition)

• • Applies decorative and functional coatings (e.g., titanium nitride, chrome-like finishes)
  • Increases wear resistance and enhances visual appeal

• Powder Coating / Painting

• • Used when color-coding or non-metallic finishes are needed
  • Typically used for enclosures or consumer-facing parts

• Nickel or Chrome Plating

• • Rarely needed but occasionally used to improve appearance or surface hardness in specific functional components

Welding and Joining (if part of assembly)

• TIG and MIG welding are commonly used to join stainless steel parts during prototyping
• Post-weld treatments may include pickling, passivation, or grinding to restore corrosion resistance and surface finish

6. Cost and Lead Time Analysis

Costs depend on volume, geometry complexity, post-processing, and material type.

7. Key Applications of Stainless Steel Rapid Prototyping

8. Advantages of Stainless Steel Rapid Prototyping

Stainless steel rapid prototyping offers a unique combination of mechanical performance, material reliability, and production speed, making it a highly valuable approach in engineering, product development, and industrial testing.

Excellent Mechanical Strength and Durability

• Stainless steel prototypes exhibit high tensile strength, fatigue resistance, and load-bearing capability.
• Suitable for functional testing and end-use parts, especially in harsh environments.

Corrosion and Heat Resistance

• Grades like 316L are highly resistant to corrosion, acids, and saline environments, enabling prototypes to be tested in real-world operational conditions.
• Stainless steel can maintain structural integrity at elevated temperatures, useful for heat exchangers, exhaust parts, or engine components.

Functional and Production-Equivalent Prototypes

• Unlike plastic or resin-based prototypes, stainless steel prototypes closely simulate final production parts in terms of mechanical and thermal performance.
• Engineers can use them for destructive testing, pressure tolerance assessments, or field trials.

Compatibility with Multiple Manufacturing Methods

• Stainless steel is versatile and supports several prototyping processes:

• • CNC Machining for precision parts
  • Metal 3D Printing for complex geometries
  • Investment Casting for short runs and intricate shapes
  • Sheet Metal Fabrication for structural and enclosure-type components

Superior Surface Finishing Options

• Stainless steel can be finished to a wide range of surface qualities:

• • Mirror-polished for consumer products
  • Passivated for medical or food-grade use
  • Brushed or bead-blasted for industrial applications

Biocompatibility and Sanitary Properties

• Grades such as 316L are biocompatible, allowing for safe use in medical devices and implants.
• In the food and pharmaceutical industries, stainless steel’s non-reactive surface supports hygiene and easy sterilization.

Reusability and Sustainability

• Stainless steel prototypes can be repurposed, recycled, or reused in certain cases, unlike most polymer-based prototypes.
• Metal scrap generated during prototyping is recyclable, reducing material waste.

Accelerated Design Validation

• Rapid prototyping in stainless steel allows engineers to validate function, fit, and form in a compressed timeframe.
• Reduces the need for multiple iteration cycles before moving to mass production.

Broad Industry Compatibility

• From aerospace and automotive to consumer electronics and medical devices, stainless steel prototyping is applicable across high-performance industries.

9. Limitations of Stainless Steel Rapid Prototyping

• Higher Cost
  Stainless steel material and processing costs are much higher than plastics or aluminum, increasing prototype expenses.
• Design Restrictions
  Complex shapes, thin walls, or internal features can be hard or costly to produce, especially with CNC machining or 3D printing.
• Warping and Distortion
  Metal 3D printing of stainless steel can cause warping or residual stress, especially in large or thin parts, requiring extra heat treatment.
• Surface Finish
  Raw stainless steel parts from 3D printing or casting often have rough surfaces and need additional polishing or finishing.
• Tool Wear
  Stainless steel is tough on cutting tools, causing faster wear and longer machining times, which raises costs.
• Size Limits
  Metal 3D printers have limited build volumes, making large parts challenging without assembly.
• Longer Lead Times
  Some methods like casting take longer (7–10+ days), delaying prototype delivery.
• Safety and Environmental Concerns
  Handling stainless steel powders and chips requires proper safety measures and waste management.

10. How to Choose the Right Prototyping Method

Selecting the most appropriate stainless steel prototyping method depends on several key factors, including geometry, functionality, production volume, lead time, and budget.

• CNC Machining is ideal for parts with simple to moderately complex geometries that require high dimensional accuracy and fine surface finishes.
  It is best suited for functional prototypes that demand tight tolerances and material integrity.
• Metal 3D Printing (such as DMLS or SLM) is well-suited for highly complex designs with internal channels, lattice structures, or weight-saving features that are difficult or impossible to machine. It allows rapid iteration without tooling.
• Investment Casting offers a cost-effective solution for low- to medium-volume production of intricate stainless steel parts with excellent surface finish and near-net-shape capabilities.
• Sheet Metal Fabrication is the preferred method for rapid production of flat or simple 3D components, especially when speed and low tooling costs are priorities.

In addition to technical considerations, the experience and capabilities of the supplier play a critical role.

A qualified prototyping partner with expertise in stainless steel and the selected process can provide valuable engineering support, minimize errors, and ensure that the final prototype meets performance expectations.

Lastly, material certification is essential, particularly in regulated industries like aerospace, automotive, and medical.

It ensures that the stainless steel used meets required mechanical and chemical specifications for safety and performance.

11. Comparison of Stainless Steel, Aluminum, and Plastic in Rapid Prototyping

12. Conclusion

Stainless steel rapid prototyping is transforming how functional prototypes are developed, tested, and iterated.

By combining the robustness of stainless steel with the agility of rapid prototyping technologies like CNC machining, 3D printing, and investment casting,

Engineers can test performance under real-world conditions, bridging the gap between prototype and production.

Whether for aerospace reliability, medical biocompatibility, or industrial durability, stainless steel prototyping is an essential tool in high-performance product development.

LangHe: Stainless Steel Rapid Prototyping Services

LangHe offers professional stainless steel rapid prototyping solutions tailored for industries that demand precision, speed, and functional performance.

From early-stage product validation to functional testing and low-volume production, our services enable engineers and designers to bring stainless steel parts to market faster and with greater confidence.

With advanced prototyping technologies and material expertise, LangHe ensures that every stainless steel prototype meets strict mechanical, dimensional, and aesthetic requirements.

Our Stainless Steel Prototyping Capabilities Include:

CNC Machining

Fast-turnaround, high-precision stainless steel machining for functional prototypes with tight tolerances.

Metal 3D Printing (DMLS/SLM)

Complex geometries and internal features with stainless steel materials such as 316L and 17-4PH.

Investment Casting (Lost Wax Prototyping)

Ideal for intricate, short-run parts where surface finish and dimensional repeatability are key.

Sheet Metal Fabrication

Quick production of flat or bent stainless steel parts through cutting, bending, and welding.

Whether you require a single stainless steel prototype or short-run production for functional testing, LangHe delivers speed, quality, and material integrity — every time.
Contact us today to discuss your stainless steel prototyping needs and accelerate your product development cycle.
