High-Manganese Steel: Properties, Performance, and Applications

1. Introduction

High-manganese steel is a class of steels in which manganese (Mn) is the dominant alloying element used to stabilize austenite and to produce characteristic mechanical behaviour — notably very high ductility in the annealed state and exceptional strain-hardening in service.

These alloys are used where impact, shock and combined impact-abrasion or extreme energy absorption are required.

In recent decades the family has expanded beyond classic “Hadfield” steels to include modern TWIP/TRIP variants targeted at automotive and advanced structural applications.

2. What are high-manganese steels?

High-manganese steel is a family of steels in which manganese (Mn) is the principal alloying element used to stabilise an austenitic (face-centred cubic) matrix at room temperature and to control how the metal deforms.

Rather than relying on conventional quench-and-temper hardening, these steels derive their distinctive behaviour from metallurgical mechanisms activated during deformation — notably intense work-hardening, mechanical twinning (TWIP) and/or strain-induced martensitic transformation (TRIP).

That combination delivers an unusual pairing of high as-manufactured ductility and rapid hardening under load, which is exploited where impact, shock plus abrasion, or very high energy absorption are required.

Core characteristics (what defines them)

• High Mn content. Typical commercial ranges vary by family but commonly fall between ≈10–22 wt% Mn (Hadfield ~11–14% Mn; TWIP grades often 15–22% Mn).
• Austenitic base microstructure. Mn is an austenite stabiliser; with suitable C and other additions the steel retains an fcc structure at room temperature.
• Exceptional ductility in the annealed condition. Total elongations commonly >30% and in many TWIP grades >50% prior to work hardening and failure.
• Strong strain hardening. Under plastic deformation the material rapidly gains strength; local surface hardness can increase dramatically in service (Hadfield liners often rise from ~200 HB to 500–700 HB in worn zones).
• Deformation mechanisms are composition-sensitive. Small changes in C, Al, Si, N and Mn shift the stacking fault energy (SFE) and therefore the operative mechanism: dislocation slip, twinning (TWIP), or martensitic transformation (TRIP).
• High toughness and energy absorption. Because the bulk remains ductile while the surface hardens, these steels combine impact resistance with progressive wear resistance.

3. Classification of High-Manganese Steels

High-manganese steels are best classified not by a single standard but by (a) their intended application (wear vs structural), (b) the dominant deformation mechanism (work-hardening, TWIP, TRIP), and (c) processing route (wrought/rolled vs cast).

Quick reference classification table

Practical implications of each class

• Hadfield (wear): design for thick sections and replaceable liners; expect large surface hardening and long life under repeated impact.
  Fabrication: relatively straightforward casting/forging and minimal machining after initial shaping. Welding and repair require qualified procedures.
• TWIP (structural): design leverages high uniform elongation to absorb energy; needs precise chemistry and thermomechanical processing to achieve targeted SFE.
  Machining and welding require specialized procedures; benefits delivered in sheet/formed parts.
• TRIP/TWIP hybrids: choice when early strength plus ductility is required—offers balanced crash performance; production control more sensitive.
• Cast high-Mn: chosen when complex geometries are required and work-hardening behavior is still beneficial; casting metallurgy (melt cleanliness, shell chemistry, heat treatment) is critical to performance.
• Low-C / weldable variants: compromise grades for assemblies requiring extensive welding or fabrication where classic high-C Hadfield would cause HAZ embrittlement or cracking.

4. Typical Chemical Compositions and Microstructures

This section summarizes the representative chemistries used in common high-manganese steel families and explains how composition maps to microstructure and deformation behaviour.

The tables and commentary give practical, engineering-level ranges rather than exact specifications — always use supplier grade sheets and MTCs for purchase/specification.

Representative composition ranges (wt %)

5. Key Mechanical Properties of High-Manganese Steels

High-manganese steels exhibit a unique combination of strength, ductility, toughness, and work-hardening capacity, making them distinct from conventional carbon or low-alloy steels.

Mechanical properties vary significantly depending on composition, processing (wrought vs. cast), and heat treatment, as well as the operative deformation mechanism (work-hardening, TWIP, TRIP).

Representative mechanical properties by grade

Notes: Values are typical ranges; actual properties depend on alloy composition, rolling/casting history, heat treatment, and service conditions.

Surface hardness values reflect work-hardening or service-activated hardening for Hadfield and cast high-Mn steels.

6. Manufacturing Processes

High-manganese steels present unique manufacturing challenges due to manganese’s high vapor pressure, tendency to oxidize, and the need to control phase structure.

Key processes include smelting, casting, rolling, and heat treatment.

Smelting

• Challenges: Manganese oxidizes readily at high temperatures (forming MnO), which reduces alloy yield and degrades properties.
  Carbon acts as a deoxidizer (MnO + C → Mn + CO), but excess carbon can form brittle carbides.
• Process: Conducted in electric arc furnaces (EAF) or induction furnaces under a reducing atmosphere (carbon monoxide).
  Manganese is added as high-carbon ferromanganese (75–80% Mn) to control carbon content.
• Quality Control: Optical emission spectroscopy (OES) monitors Mn and C levels to within ±0.1 wt% to ensure phase stability.

Casting

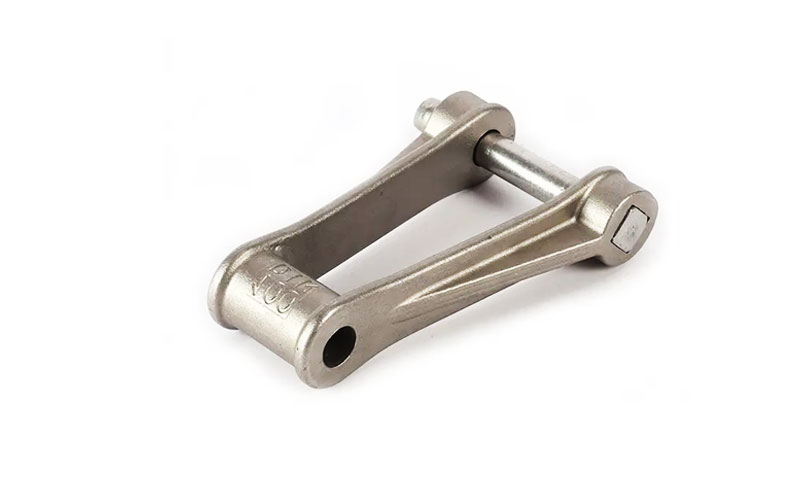

• Hadfield Steel: Primarily sand-cast (green sand or resin-bonded sand) into large components (e.g., crusher jaws, railway frogs).
  Casting temperature: 1450–1550°C; mold preheating: 200–300°C to prevent thermal shock.
• Advanced HMnSs: Continuous casting into slabs (for rolling into sheets) or die-cast into small automotive components.
  Continuous casting requires strict control of cooling rate (5–10°C/s) to avoid segregation.

Rolling and Forming

• Hot Rolling: Advanced HMnSs are hot-rolled at 1000–1100°C (austenitic region) to reduce thickness (from slabs to 1–3 mm sheets for automotive use). Rolling reduces grain size, enhancing strength.
• Cold Rolling: Used to achieve final thickness (0.5–1 mm) and improve surface finish.
  TWIP steels exhibit good cold formability due to their high ductility, while TRIP steels require intermediate annealing to relieve residual stress.
• Forming Challenges: Hadfield steel’s low yield strength in the as-cast state makes it prone to deformation during handling, while AHMnSs may require warm forming (150–250°C) to reduce springback.

Heat Treatment

Heat treatment is critical to optimizing phase structure and properties:

• Solution Annealing (Hadfield Steel): Heated to 1050–1100°C for 2–4 hours, then water-quenched. This dissolves carbides (Mn₃C) and retains a single austenitic phase at room temperature.
• Intercritical Annealing (TRIP Steels): Heated to 700–800°C (two-phase γ+α region) for 1–2 hours, then quenched. This creates a mixed microstructure that promotes the TRIP effect.
• Stress Relieving: Applied to cast Hadfield steel components at 550–600°C for 1–2 hours to reduce residual stresses from casting.

7. Key Properties and Performance

Wear Resistance

Hadfield steel’s wear resistance is its defining feature, stemming from extreme work hardening:

• Abrasive Wear: In mining applications (e.g., crusher liners), Hadfield steel outperforms plain carbon steel by 5–10x, with a wear rate of 0.1–0.3 mm/year (vs. 1–3 mm/year for A36 steel).
• Impact Wear: Under repeated impact (e.g., railway frogs), its surface hardness increases from 200 HV to >500 HV, forming a wear-resistant layer while the core remains tough.

Strength and Ductility

Advanced HMnSs redefine the strength-ductility trade-off:

• TWIP Steel (22% Mn): Tensile strength = 900 MPa, elongation = 70% → SDP = 63 GPa·%—3x higher than conventional high-strength low-alloy (HSLA) steel (SDP = 20 GPa·%).
• TRIP Steel (18% Mn): Tensile strength = 1100 MPa, elongation = 35% → SDP = 38.5 GPa·%—ideal for crash-resistant components.

Cryogenic Performance

High-manganese steels with 20–30% Mn maintain austenitic stability at cryogenic temperatures:

• At -200°C, a 25% Mn steel retains 60% elongation and 900 MPa tensile strength—no brittle transition temperature (unlike ferritic steels, which become brittle below -40°C).
• This makes them suitable for LNG storage (LNG boils at -162°C) and aerospace cryogenic systems.

Corrosion Resistance

• Hadfield Steel: Moderate corrosion resistance in atmospheric environments but prone to pitting in chloride-rich media (e.g., seawater).
• Modified HMnSs (Cr-Alloyed): Adding 2–5% Cr improves pitting resistance in seawater, with a corrosion rate of 0.05–0.1 mm/year (vs. 0.2–0.3 mm/year for unalloyed Hadfield steel).

9. Typical Industrial Applications of High-Manganese Steels

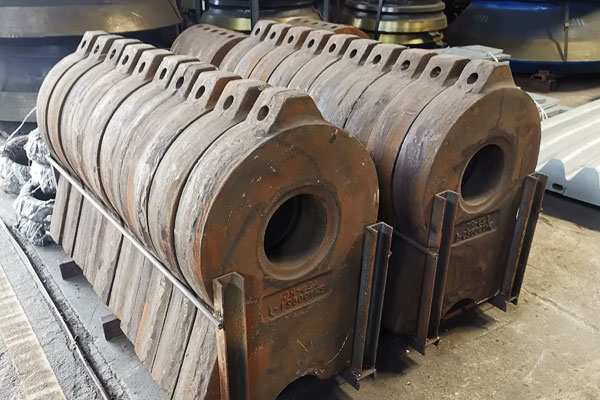

• Mining and aggregate handling: crusher liners, jaw plates, cone liners, hoppers.
• Earth-moving and excavation: bucket teeth, lip shrouds, tooth adapters.
• Railways: crossing frogs, switch components.
• Shot blasting & media handling: tumblers, blast pots.
• Automotive: TWIP steels for structural members, energy absorbers and crash boxes.
• Wear parts in heavy industry where combined impact and abrasion occur.

10. Comparison with Other Materials

High-manganese steels (HMnSs) occupy a unique niche in the materials spectrum due to their combination of wear resistance, toughness, and ductility, which differs markedly from conventional steels, stainless steels, and high-strength alloys.

11. Conclusion

High-manganese steels offer a unique combination of toughness, ductility and adaptive surface hardening that makes them indispensable for a range of demanding industrial applications.

Modern TWIP/TRIP variants expand their utility into structural and lightweighting roles in transport industries. Successful deployment requires attention to chemistry control, processing, welding practice and machining strategy.

When correctly specified and processed, high-Mn steels deliver superior lifecycle performance in environments dominated by impact, shock and heavy abrasion.



FAQs

Are high-Mn steels weldable?

Yes, with precautions: use appropriate austenitic filler metals, control heat input and interpass temperatures, and provide local fume extraction.

Post-weld solution anneal may be recommended for critical parts.

When should I not use high-Mn steel?

Avoid when dominant wear mode is low-stress fine abrasion (e.g., slurry with fine silica) or when immediate high surface hardness from day one is required — in such cases hardened steels, hardfacing or ceramics can be superior.

Why is Hadfield steel used in mining applications?

Hadfield steel’s extreme work hardening (surface hardness >500 HV under impact) gives it 5–10x better wear resistance than carbon steel, extending the service life of crusher liners and buckets to 5–10 years.

Can high-manganese steels be used in cryogenic applications?

Yes—grades with 20–30% Mn maintain austenitic stability at -200°C to -270°C, retaining 60–70% elongation and avoiding brittle fracture, making them ideal for LNG storage tanks.

What are the challenges of welding high manganese steel?

Welding can cause carbide precipitation in the heat-affected zone (reducing ductility) and hot cracking.

Solutions include low-heat-input welding, post-weld annealing, and matching filler metals.
