Investment Casting vs Powder Metallurgy: Which Process Is Right?

Introduzzjoni

Among the myriad of manufacturing methods, two distinctly different—yet often competing—technologies stand out: investment casting and powder metallurgy (PM).

Ikkastjar ta 'investiment, a millennia‑old process refined through modern materials science, offers unparalleled geometric freedom and alloy versatility.

Metallurġija tat-trab, a 20th‑century innovation, delivers exceptional material efficiency, high production rates, and controlled porosity for specialized applications.

Mal-ewwel daqqa t'għajn, both processes produce near‑net‑shape metal parts with minimal machining.

But their underlying principles—solidification from molten metal versus pressure‑sintering of solid powders—lead to radically different design rules, material capabilities, Propjetajiet mekkaniċi, and economic scales.

Choosing between these two technologies requires a comprehensive understanding of not only production costs but also mechanical requirements, Kumplessità tal-Ġeometrija, Volum tal-Produzzjoni, għażla tal-materjal, and long-term service performance.

1. Understanding Investment Casting

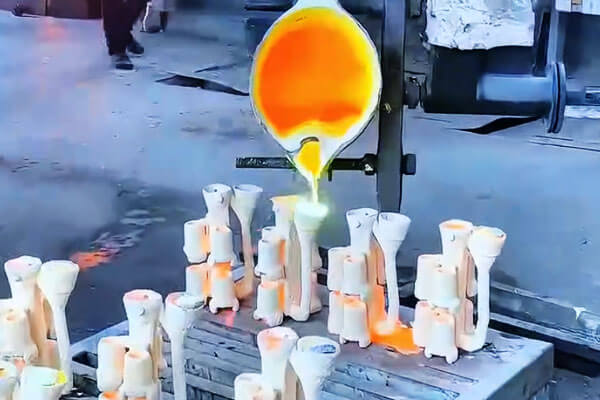

Ikkastjar ta 'investiment, also known as lost‑wax casting, is a precision metal forming process in which a wax pattern is coated with a refractory ceramic shell, Ix-xama tinħall, and the resulting cavity is filled with molten metal.

Wara solidifikazzjoni, the ceramic shell is removed, revealing a near‑net‑shape metal component with exceptional surface finish and dimensional accuracy.

The process dates back over 5,000 years to ancient civilizations in Egypt, Iċ-Ċina, and Mesopotamia, where it was used for bronze statues and jewellery.

Illum, it is a high‑technology manufacturing method for aerospace turbine blades, Impjanti mediċi, firearm components, and industrial valves.

Fundamentali tal-Proċess

Karatteristiċi ewlenin

2. Understanding Powder Metallurgy

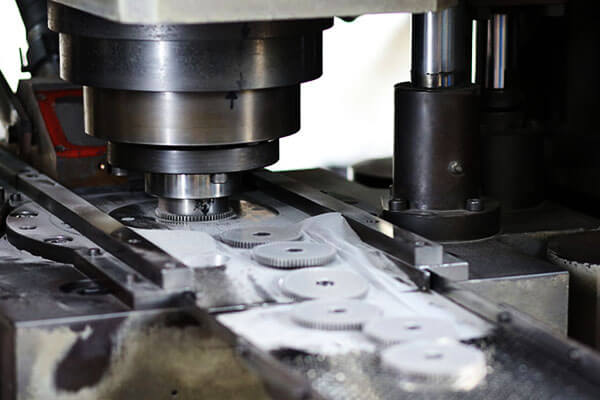

Metallurġija tat-trab is a manufacturing process in which fine metal powders are compacted (pressed) in a rigid die and then heated (sinterizzat) below the melting point to bond the particles into a solid component.

Unlike investment casting—which involves a liquid‑to‑solid phase change—PM is a solid‑state process that retains the powder’s chemical and microstructural features.

The modern PM industry emerged in the 1920s with the production of self‑lubricating bearings and tungsten lamp filaments.

Illum, it is a mature, high‑volume manufacturing technology, with the automotive industry consuming over 70% of all ferrous PM parts globally.

Fundamentali tal-Proċess

Karatteristiċi ewlenin

3. Manufacturing Principles: How the Processes Differ

Fundamental difference: Investment casting is a net‑shape precision casting proċess; PM is a powder consolidation proċess.

The former offers near‑infinite geometric freedom; the latter offers near‑infinite material efficiency.

4. Materials Compatibility and Alloy Flexibility

Key insight: Investment casting offers substantially broader alloy flexibility, particularly for high‑melting, reactive, or difficult‑to‑press alloys (titanju, SuperAlloys, cobalt‑chrome).

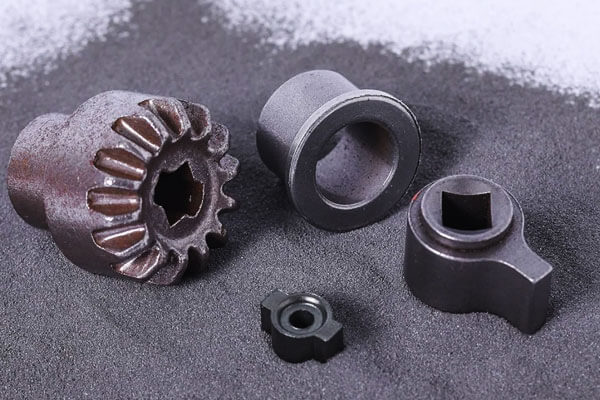

Powder metallurgy excels in ferrous, copper‑based, and tungsten‑based materials, as well as composites that cannot be cast due to immiscibility or segregation.

5. Preċiżjoni dimensjonali u finitura tal-wiċċ

Li huwa aħjar? For complex geometries with fine detail and high surface finish, investment casting is superior.

For simple geometries requiring extremely tight tolerances (especially after secondary operations), PM has an edge.

6. Complexity of Geometry and Design Freedom

Investment casting wins decisively in geometric complexity.

The ability to create undercuts, curved internal channels, organic contours, and fine surface details is unmatched by powder metallurgy, which is constrained by the pressing die and the requirement for uniaxial compaction.

7. Mechanical Properties and Structural Performance

Key comparison: Investment cast parts are fully dense u, when properly cast, approach wrought properties (90‑95% of forged values).

Powder metallurgy parts, even in high‑density grades (≥95% theoretical), have residual porosity that reduces ductility, ebusija, and fatigue performance.

For safety‑critical, high‑load, or impact‑prone applications, investment casting is preferred.

8. Densità, Porożità, and Internal Quality

Key insight: Investment casting produces fully dense parts that are pressure‑tight and can be heat‑treated without blistering.

PM parts, unless specially processed (E.g., warm compaction, double pressing, Ġenbejn), have residual porosity that limits pressure‑tightness and certain heat‑treat responses.

9. Production Volume and Manufacturing Economics

Cost decision rule:

• <1,000 partijiet / sena → Investment casting (tooling amortised).
• 1,000‑5,000 parts/year → Both possible; compare on complexity.
• >10,000 partijiet / sena → Powder metallurgy (dramatic cost savings).
• >100,000 partijiet / sena → PM is the clear winner.

10. Applikazzjonijiet tal-industrija: Investment Casting vs Powder Metallurgy

11. Advantages and Limitations of Investment Casting

Vantaġġi

• Exceptional geometric complexity – undercuts, siltiet interni, Ħitan irqaq, forom organiċi.
• Broad alloy flexibility – almost any castable metal, including superalloys and titanium.
• Finitura tal-wiċċ eċċellenti – Ra 1.6‑6.3 µm as‑cast; can be polished to near‑mirror.
• Near‑net shape – minimal material waste; buy‑to‑fly ratio <1.5:1.
• No draft required – vertical walls possible.
• Pressure‑tight castings – can be welded and heat‑treated.
• Proven heritage – thousands of years; extensive data and standards.

Limitazzjonijiet

• High labour intensity – shell building is manual, skill‑dependent.
• Slow cycle time – days from pattern to finished part.
• Size limitation – practical maximum ~150 kg.
• Higher cost at low volumes – tooling amortisation.
• Riskju tal-porożità – shrinkage and gas porosity require robust process control.
• Limited to castable alloys – high‑melting, non‑castable materials cannot be used.

12. Advantages and Limitations of Powder Metallurgy

Vantaġġi

• Superior material utilisation - >95% scrap‑free; sostenibbli.
• Rati ta 'produzzjoni għolja – pressing cycle <1 second; sintering continuous.
• Excellent dimensional consistency – die‑controlled precision.
• Low per‑part cost at high volumes.
• Controlled porosity – for filters, self‑lubricating bearings, battery electrodes.
• Multa, Struttura uniformi tal-qamħ – no cast defects.
• Ability to blend alloys – create unique compositions not possible via melting.
• Makkinabilità tajba – many PM alloys contain elements that enhance machining.

Limitazzjonijiet

• Kumplessità ġeometrika limitata – essentially 2.5D; no undercuts, siltiet interni.
• Draft angles required – for part ejection from dies.
• Lower mechanical properties – residual porosity reduces ductility and fatigue.
• Size and weight restrictions - <10 kg, <300 mm tipiku.
• Porosity limits pressure‑tightness – sealing required for fluid‑handling applications.
• Alloy flexibility limited – titanium, aluminium, superalloys are difficult or costly.
• Tooling cost high – die sets are expensive; break‑even volumes high.

13. Investment Casting vs Powder Metallurgy: Tabella komprensiva ta 'paragun

14. Konklużjoni

Investment casting vs powder metallurgy are not competing technologies in every situation; pjuttost, they solve different manufacturing challenges.

Investment casting excels when engineers require complex geometries, broad alloy selection, Propjetajiet mekkaniċi superjuri, Densità għolja, and structural reliability.

It remains the preferred choice for aerospace components, Korpi tal-valv, Partijiet tal-pompa, apparat mediku, and high-performance industrial equipment.

Powder metallurgy excels in large-scale production environments where dimensional consistency, effiċjenza tal-materjal, awtomazzjoni, and low unit costs are primary objectives.

It dominates applications such as automotive gears, bearings, boxxli, and mass-produced mechanical components.

The optimal selection depends on balancing five critical factors:

• Component geometry
• Required mechanical performance
• Material requirements
• Volum tal-produzzjoni
• Total lifecycle cost

Understanding these factors allows manufacturers to select the most technically appropriate and economically competitive process.



FAQs

Is investment casting stronger than powder metallurgy?

In most structural applications, IVA. Investment cast components generally achieve higher density, porożità baxxa, and better fatigue resistance than conventional powder metallurgy parts.

Which process provides better dimensional accuracy?

For simple, Partijiet ta 'volum għoli, powder metallurgy often offers tighter repeatability. For complex geometries, investment casting typically provides better overall dimensional capability.

Can both processes produce stainless steel components?

IVA. Both technologies support stainless steel manufacturing, although investment casting offers greater flexibility in alloy grades and component complexity.

Which process is more cost-effective?

Powder metallurgy is generally more cost-effective for very high production volumes. Investment casting is often more economical for low-to-medium production runs and complex parts.

Which industries rely most heavily on investment casting?

Aerospazjali, żejt u gass, Ipproċessar kimiku, Tagħmir mediku, Ġenerazzjoni tal-Enerġija, Ipproċessar tal-ikel, and industrial machinery are among the largest users of investment-cast components.
