Custom Cast Aluminum Tube Connectors

1. giriiş

Cast aluminum tube connectors are purpose-designed fittings (tees, dirsekler, kaplılar, adapters, flanşlar, barb fittings, quick-connect housings) that join pipes or tubes in fluid, pneumatic and structural systems.

Casting offers near-net geometry, internal shapes (flow passages, patronlar, kaburga), and integration of features that would be expensive or impossible by machining alone.

Aluminum brings a high strength-to-weight ratio (yoğunluk ≈ 2.68 g · cm⁻³), good corrosion resistance for many environments, excellent thermal and electrical conductivity, and recyclability — but has limits in extreme pressure or aggressive chemical service where steels or exotic alloys are preferred.

2. What is a Cast Aluminum Tube Connector?

A alüminyum tube connector is a purpose-made cast component that mechanically and/or fluidically joins two or more tubes, pipes or hoses.

It performs the functions of alignment, structural support, sızlanma, Ve (sıklıkla) flow routing — in any combination — while exploiting casting to produce near-net shapes, integrated features and internal passages that would be difficult or costly to machine from solid.

Functional scope

Typical connector types produced by casting include:

• Kaplılar / unions / nipples — straight joins between two tubes.
• Dirsekler / bends (45°/90°) — change flow direction.
• Tees / wyes — branch a flow into two or more paths.
• Adaptörler — convert between thread standards, tube sizes or connection types (push-fit, flare, compression).
• Barb fittings & hose tails — for flexible hose attachment.
• Manifoldlar / multi-port blocks — integrate several ports, valves or sensors into one body.
• Integrated assemblies — connectors with built-in valves, filtreler, sensörler, or fast-mount tabs.

3. Why Choose Cast Aluminum — material advantages & limits

Key material advantages

• Düşük yoğunluk: ≈ 2.68 g · cm⁻³ → lightweight assemblies and lower inertia.
• Good specific strength: many cast alloys reach useful UTS after T6 heat treatment (see table). Typical cast alloys used for connectors combine adequate tensile strength (200–320 MPa) iyi süneklikle.
• Bozulabilirlik & karmaşıklık: casting reproduces complex internal geometries, thin sections for flow passages and integrated bosses at lower unit cost for medium volumes.
• Korozyon direnci: naturally forms a protective oxide (Al₂o₃). With anodizing or coatings, corrosion resistance is improved in many environments.
• Termal & elektriksel iletkenlik: useful for heat dissipation or grounding.
• Geri dönüşüm & sürdürülebilirlik: aluminum is highly recyclable with modest loss of properties.

Sınırlamalar / cautions

• Lower absolute strength vs steels: aluminum’s yield strength and ultimate strength are lower than common steels; unsuitable where very high pressures, structural loads or thread torque require steel.
• Creep at elevated temperature: aluminum softens above ~150–200°C depending on alloy — not appropriate for sustained high-temperature service.
• Galvanic corrosion risk: when in electrical contact with more noble metals (bakır, paslanmaz çelikler), galvanic corrosion can accelerate unless insulated.
• Fatigue sensitivity: cast parts can contain porosity; fatigue life must be qualified (BELKİ, pressure die casting or squeeze casting reduces porosity).

4. Malzemeler & Alloys Commonly Used

Below is a concise practical table of common alüminyum Döküm Alaşımları used for tube connectors, with typical heat-treat states and practical mechanical ranges.

5. Manufacturing routes & process comparison

Different casting processes are used depending on volume, detail, required mechanical properties and cost.

Design/Process match: For pressure-rated fluid connectors where fatigue and internal integrity matter, permanent-mold A356 (T6) veya vakumlu HPDC with post-process densification are common.

For low-pressure HVAC or aesthetic connectors, HPDC A380/ADC12 may be most economical.

6. Design for castability — geometry, tolerances and DFM rules

Wall thickness and uniformity

• Recommended nominal wall thickness: 1.5–4,0 mm for die-cast thin walls; 3–8 mm for sand/permanent-mold depending on size. Sürdürmek tek tip duvar kalınlığı to minimize shrinkage and warpage.

Fileto, radii and stress relief

• Use generous fillets at boss and groove bases. Fillet radius ≥ 1.5× local wall thickness reduces stress concentration and improves metal flow.

Draft and parting line

• Sağlamak taslak açılar fırlatma için: 0.5°–3° depending on texture and casting method. Clearly define parting line relative to critical sealing faces (avoid sealing surfaces across parting lines).

Bosses and mounting features

• Design bosses with adequate root thickness and gussets; avoid placing high-stress fasteners directly into thin cast material — use steel inserts for repeated torque cycles.

Threads and sealing features

• For pressure-tight connectors favor machined or pressed inserts for threads rather than tapping thin cast thread. Use O-ring grooves with radii to avoid sharp corners that stress concentrations.

Machining allowance and tolerances

• As-cast tolerances vary by process; specify datums and machinings: typical as-cast dimensional tolerance Başına ± 0.1-0.5 mm 100 mm for investment/die-cast, ±0.5–1.0 mm for sand casting. Planı işleme ödenekleri of 0.3–1.5 mm on critical faces.

7. Birleştirme, sealing and installation methods

Connectors interface with tubing by different methods — design must accommodate the selected joining strategy.

Mekanik

• Compression fittings / ferrule — connector body houses ferrule and nut; compression forms pressure seal. Aluminum connectors used with brass ferrules or stainless; beware of differential hardness and galling.
• Barb fittings + hose clamp — used for flexible hoses; connector must have defined barb profile and retention length.
• Threaded connections — machine threads (BSP, Npt, metrik) into cast body or use threaded inserts (Helicoil) to improve thread life in aluminum. For high torque/pressure prefer steel inserts.
• Flange bolted joints — ensure bolt pads are reinforced; specify gasket grooves and bolt circle. Use studs or threaded inserts if repeated assembly cycles are expected.

Metallurgical

• Lehimleme / lehimleme — aluminum can be brazed with specialized fluxes and filler metals (Örn., Al-Si brazing alloys). Requires flux control and often inert atmosphere for high-quality joints.
• Kaynak — aluminum castings may be weldable (Alaşım'a bağlı olarak); use appropriate filler (4043/5356) and pre/post-weld treatments.
  Cast A356 can be welded but distortion and reduced fatigue life must be considered.
• Yapışkan bağ — structural adhesives used in some low-pressure connectors; yüzey hazırlığı (anodize etmek, primer) eleştirel.

Sealing options

• Elastomer O-rings / contalar — common; design grooves to standard dimensions and specify material (EPDM, NBR, Fkm) per fluid.
• PTFE tape / thread sealant — for threaded connections (beware of torque control).
• Metal-to-metal seats — used for high temp; require precise machining and hardening/coating.

Installation notes

• Fastener selection: avoid plain carbon steel fasteners in contact without isolation (galvanik korozyon). Use stainless or plated hardware per environment.

8. Mekanik performans, Pressure capability, and Safety considerations

Pressure capability

• Pressure rating depends on alloy, döküm işlemi, duvar kalınlığı, thread retention and sealing method. Typical conservative guidance:

• • Low-pressure fluid fittings (su, HVAC): kadar 10–20 bar (150–300 psi) feasible with cast aluminum if designed and tested.
  • Medium pressure (pnömatik, low-pressure hydraulic):20–100 bar (300–1500 psi) possible only with robust geometry, post-cast densification, O-ring seals and steel inserts.
  • High pressure hydraulic (>200 çubuk / >3000 psi):steel or forged fittings are typically preferred; aluminum connectors need extensive validation and often are unsuitable.

Emniyet & design factor

• Kullanmak güvenlik faktörleri appropriate to application (typically 3–4× for pressure systems), consider fatigue, burst pressure tests and cyclical loads.

Tükenmişlik & dynamic loads

• Castings can contain microvoids; fatigue life must be established by testing. For cyclic pressure/vibration environments, prefer vacuum die casting/permanent mold alloys and consider HIP or shot peening for improved life.

Thread strength & pull-out

• Thread engagement and insert choice determine axial pull-out strength. For repeated assembly/disassembly use steel inserts or threaded collars.

9. Korozyon, Yüzey koruması, and Longevity

Corrosion modes

• Tekdüze korozyon: generally low for aluminum in neutral environments.
• Çukur & çatlak korozyonu: Klorür açısından zengin ortamlarda (deniz suyu) aluminum alloys can pit; use higher-silicon or anodized surfaces, or choose stainless/bronze.
• Galvanik korozyon: aluminum is anodic to steel, bakır, brass — avoid direct contact or insulate; electrical contact accelerates galvanic attack.
• Erosion-corrosion: fast moving abrasive fluids can abrade oxides and accelerate corrosion.

Protective measures

• Eloksal: thick anodic film improves wear and corrosion resistance and provides a good primer surface for paints.
• Dönüşüm kaplamaları: alodine (chromate-based, though environmental regs limit use) or non-chromate alternatives for corrosion inhibition and paint adhesion.
• Paints & powder coatings: for external environmental protection.
• Katodik koruma: sacrificial anodes rarely used on small connectors; insulating joints is often simpler.
• Malzeme seçimi: choose more corrosion-resistant alloys (Örn., A356 with appropriate post-treatments) or move to stainless/bronze for seawater.

Sealing porous castings

• Impregnation (reçine) can seal through-porosity for fluid-bearing parts manufactured by processes that produce porosity (some HPDC or sand cast conditions).

10. Maliyet, Kurşun zamanı, and Manufacturing economics

Alet

• Die casting tooling: high initial cost (tens to hundreds of k$) but low per-part cost at high volume.
• Permanent mold tooling: ılımlı maliyet, uzun ömür.
• Sand molds / 3D printed patterns: low initial cost suitable for prototypes/small runs.

Parça başına maliyet etkenleri

• Karmaşıklık, post-machining operations, ısıl işlem, kaplamalar, ekler, and NDT add to cost.
  Volume amortizes tooling. HPDC best for >10k–100k units/year; permanent mold for 1k–20k; sand/investment for low-volume.

Kurşun zamanı

• Prototype (printed pattern + sand mold): haftalar.
• Production tooling (die/permanent mold): weeks → months (tooling lead time).
• Cycle time per part varies from seconds (HPDC) to minutes/hours (permanent mold/investment).

11. Key Applications of Cast Aluminum Tube Connectors

Cast aluminum tube connectors are widely used in systems that require Hafif İnşaat, korozyon direnci, precision flow paths, Ve cost-effective high-volume manufacturing.

Their combination of castability, kuvvet, and machinability makes them suitable across many industries.

Otomotiv & Toplu taşıma

Used in coolant systems, HVAC manifolds, turbo/intercooler pipes, and EV battery thermal-management modules.
Core benefit: Hafif, korozyona dayanıklı, Mükemmel termal iletkenlik.

HVAC, Refrigeration & Heat Pumps

Applied in refrigerant manifolds, expansion valve bodies, and heat-pump connectors.
Core benefit: Precision internal passages, leak-tight sealing interfaces.

Endüstriyel makine & Pnömatik

Used for pneumatic blocks, air connectors, and coolant distribution fittings.
Core benefit: Çok önemli olmayan, Makinesi kolay, durable for automation systems.

Water Handling & Fluid Distribution

Found in pump housings, filtration connectors, irrigation fittings.
Core benefit: Cost-efficient casting for multi-port and custom geometries.

Deniz & Açık deniz

Applied in seawater cooling systems and structural tube joints.
Core benefit: Good corrosion resistance when coated or anodized.

Aletler & Tüketici Ürünleri

Found in dishwasher/washing machine inlets, small-engine connectors.
Core benefit: Yüksek hacimli için ideal, cost-sensitive manufacturing.

Elektrikli araçlar & Battery Systems

Used in EV coolant manifolds and integrated thermal modules.
Core benefit: Termal iletkenlik + kompakt, karmaşık şekiller.

Custom Machinery & Low-Volume Equipment

Suitable for prototypes and special-purpose machines.
Core benefit: Flexible tooling, fast customization.

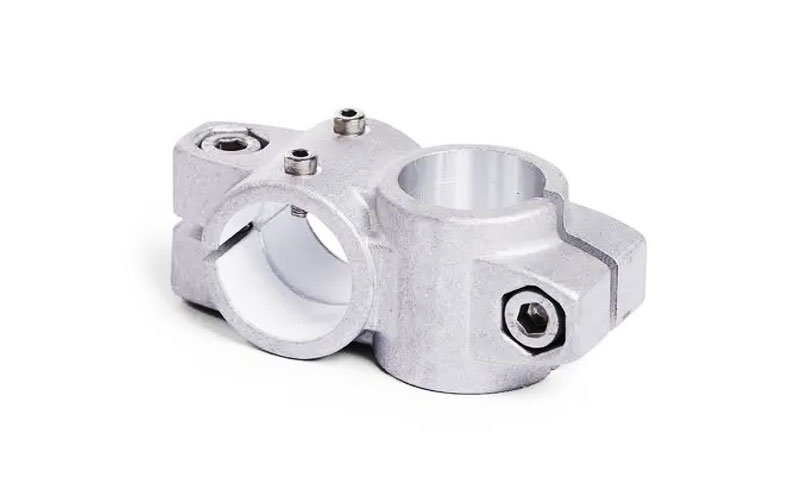

Structural Frames & Architectural Systems

Used in tube joints, kelepçeler, korkuluklar, modular structures.
Core benefit: Lightweight structural rigidity and corrosion resistance.

12. Cast Aluminum Tube Connector — vs. Alternatifler

Below is a focused, engineering-oriented comparison of cast aluminum tube connectors against the common alternative materials and manufacturing routes.

13. Çözüm

Cast aluminum tube connectors combine manufacturing economy and design flexibility with favorable material properties.

Selecting the right alloy and casting method, designing for uniform sections and effective feeding, planning robust joining and sealing strategies, and implementing appropriate quality control steps are the keys to successful, reliable connector production.

Tradeoffs among cost, kuvvet, sona ermek, pressure capability and corrosion resistance must be balanced for the intended service; prototype testing and supplier collaboration are essential before scale-up.



SSS

Which aluminum alloy is best for a pressure-rated tube connector?

For pressure-rated connectors requiring post-processing and strong mechanical performance, A356 (permanent-mold, T6 if heat treated) is a good choice.

For very high volumes and thin features, A380/ADC12 die-casting may be selected but you must control porosity and validate pressure performance.

Can cast aluminum connectors be welded?

Evet, but with care. Welding cast aluminum requires appropriate filler metal and joint design; porosity and distortion risk mean welded assemblies often require post-weld machining and inspection.

How do I ensure a cast connector is leak-tight?

Use appropriate finishing (machining flat sealing faces), O-ring grooves, impregnation if porosity exists, and validate with hydrostatic or pressure-decay testing at the specified test pressure.

Is anodizing recommended for cast connectors?

Anodizing improves corrosion resistance and appearance but requires good as-cast integrity and pre-treatment; porous castings may need impregnation or sealing before anodize.

What inspection methods detect internal porosity in cast connectors?

X-ray or CT scanning provides detailed internal porosity maps; radiography and ultrasonic testing can detect larger voids; helium pycnometry and destructive metallography quantify porosity fraction.
