What Is the Melting Point of Titanium?

1. مقدمه

تیتانیوم, a transition metal with atomic number 22 and symbol Ti, stands out in the material science landscape for its unique combination of low density, مقاومت در برابر خوردگی استثنایی, قدرت خاص, and remarkable biocompatibility.

That combination gives it a thermal and mechanical profile that is unusual among structural metals.

The melting point is one of the most fundamental properties used to define that profile, because it marks the boundary between solid-state integrity and liquid-state transformation.

در عین حال, titanium is not a simple “high-melting metal.” Its behavior is governed by a second key temperature landmark: the α-to-β transformation.

That transformation occurs far below the melting point and plays a central role in heat treatment, جعل, جوش, and microstructural control.

در نتیجه, titanium must be understood not only through its melting point, but through the relationship between melting, ثبات فاز, and thermal reactivity.

2. What Is the Melting Point of Titanium?

The accepted melting point of pure تیتانیوم تقریباً است 1668–1670°C, یا در مورد 1941–1943 K.

The Royal Society of Chemistry lists titanium at 1670درجه سانتیگراد / 1943 k, and a NIST pulse-heating study on 99.9% pure titanium concluded that the melting point is 1945 k.

The small variation among sources is normal and reflects differences in purity, روش اندازه گیری, and temperature-scale calibration rather than any meaningful scientific disagreement.

This value is high enough to place titanium above common lightweight metals such as aluminum and magnesium, and also above iron and nickel.

Yet it remains far below refractory metals such as tungsten.

That positioning is important: titanium is not a refractory metal in the strictest metallurgical sense, but it is thermally robust enough to serve in demanding applications where weight matters almost as much as heat resistance.

Why the Number Is Not Just a Number

Titanium is chemically reactive at elevated temperature.

NIST specifically emphasized that high-temperature measurements on group IVB metals require minimized contact with other materials because contamination can influence the result.

از نظر عملی, titanium’s melting point should be treated as a carefully measured thermodynamic reference, not merely a textbook constant copied from one table to another.

3. Why Titanium’s Melting Point Matters Metallurgically

Titanium’s melting point matters because it defines the absolute upper limit of solid-state stability.

But in metallurgy, the more influential threshold is often the α-to-β transition temperature, which is approximately 885درجه سانتیگراد for pure titanium.

ASM notes that alloying elements affect transformation temperatures, قدرت, ارتجاعی, سختی, رفتار خوردگی, and other critical properties.

That means titanium design is shaped by both the melting point and the phase-transformation landscape below it.

Melting Point vs. Transformation Temperature

These two temperatures serve different engineering purposes.

The melting point tells you when titanium ceases to be a solid. The β-transus tells you when its crystal structure changes in a way that alters microstructure and properties.

In many titanium processing routes, the important temperature is not the melting point at all, but the range near the β-transus, where forging, بازپخت, and heat treatment are deliberately managed.

Microstructural Consequences

Titanium’s α phase has a hexagonal close-packed structure, while the β phase is body-centered cubic.

This phase change is crucial because the alloy’s final properties depend heavily on how these phases are distributed after heating and cooling.

In α/β titanium alloys, controlled heat treatment can improve strength, مقاومت در برابر خستگی, و ثبات بعدی, but thermal mismanagement can produce undesirable microstructures.

Why This Matters in Design

In design practice, titanium’s melting point is often interpreted as a sign of thermal robustness, but the real engineering value comes from the combined effect of a high melting point, چگالی کم, مقاومت در برابر خوردگی, and controllable phase behavior.

That combination makes titanium unusually attractive where performance-per-unit-mass is critical.

4. Melting Points of Common Titanium and Titanium Alloys

For titanium alloys, datasheets often report a maximum value or a solidus/liquidus range rather than one universal نقطه ذوب; the table preserves that convention.

The Fahrenheit and Kelvin values are calculated from the Celsius values and rounded to whole numbers.

A few technical points to keep the table rigorous

Titanium alloys do not all behave like pure metals at the melting boundary. در عمل, alloy datasheets may list a maximum melting point, بوها جامد, بوها مایع, or a دامنه ذوب, depending on the composition and the measurement convention.

به همین دلیل است که درجه 5, به عنوان مثال, is best represented as a range rather than a single number.

NIST’s guidance on thermal analysis also makes clear that alloy melting is often a range, not a single event.

5. Measurement Methodologies: How Titanium’s Melting Point Is Determined

The determination of titanium’s melting point is a metrological challenge that requires circumventing the metal’s extreme chemical reactivity and high temperatures.

Traditional contact thermometry, such as thermocouples, is generally unsuitable at these ranges due to material degradation and potential contamination.

در عوض, researchers employ a suite of sophisticated non-contact and “containerless” methodologies:

تجزیه و تحلیل حرارتی دیفرانسیل (DTA) & DSC:

These calorimetric techniques monitor the heat flow or temperature differential between a titanium specimen and a thermally inert reference.

The distinct endothermic peak observed during heating represents the latent heat of fusion, accurately pinpointing the onset of the phase transition.

Multi-Wavelength Optical Pyrometry:

This is the standard for high-temperature, non-invasive measurement.

By detecting the spectral radiance emitted from the molten surface, scientists can calculate the temperature using Planck’s Radiation Law.

A critical factor here is the material’s spectral emissivity ($\epsilon$), which undergoes a step-change during liquefaction, necessitating advanced multi-wavelength systems to eliminate measurement errors.

Electromagnetic Levitation (EML):

To achieve ultra-high purity measurements, titanium samples are suspended in an electromagnetic field and heated inductively.

This “containerless processing” eliminates the chemical reactions that typically occur at the interface between molten titanium and conventional refractory crucibles, providing an intrinsic value for the melting point of the pure metal.

Laser-Heated Diamond Anvil Cell (LH-DAC):

This specialized apparatus is used to investigate titanium’s melting curve under extreme hydrostatic pressures.

By compressing a micro-sample between two diamond anvils and heating it with a high-power laser, researchers can simulate the thermodynamic conditions found in deep planetary interiors or during high-velocity ballistic impacts.

These rigorous methodologies have allowed scientists to refine the melting point value of titanium to within a narrow margin of error, ensuring the reliability of data used in critical engineering simulations.

6. پردازش, ساختگی, and Manufacturing Implications

Titanium’s melting point is high enough to give it an impressive thermal margin, but manufacturing titanium is never just a question of temperature.

در عمل, the real challenge is the combination of نقطه ذوب بالا, strong chemical reactivity at elevated temperature, phase sensitivity, and relatively narrow processing discipline.

These characteristics shape every major production route, from casting and forging to welding, ماشینکاری, و تولید افزودنی.

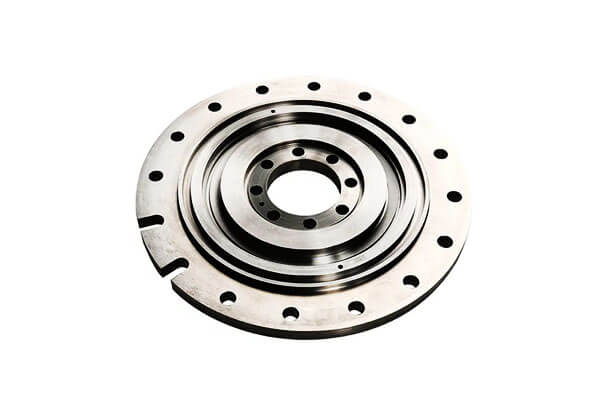

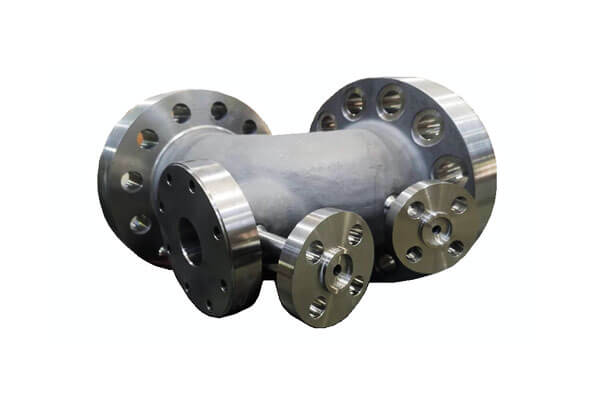

ریخته گری

ریخته گری titanium is technically feasible, but it is far more demanding than casting many conventional metals.

The alloy must be melted and poured under carefully controlled conditions because molten titanium reacts readily with oxygen, نیتروژن, کربن, and many refractory materials.

If contamination occurs, the resulting casting may suffer from embrittlement, انعطاف پذیری, or surface defects that are difficult to repair.

به همین دلیل, titanium casting is usually carried out in vacuum or inert-atmosphere systems, and the choice of crucible, قالب, and handling process is critical.

The goal is not only to reach the melting temperature, but also to preserve chemical purity while the metal is liquid.

This makes titanium casting a highly specialized process rather than a routine foundry operation.

Casting is especially useful when the part geometry is complex, the production volume is moderate, and the cost of machining from solid stock would be excessive.

هر چند, because titanium is sensitive to contamination and shrinkage-related defects, casting demands strong process control, qualified melting practice, and careful post-cast inspection.

In many applications, cast titanium parts are acceptable only when the design and quality assurance system are built around the limitations of the process.

Forging and Hot Working

Forging is one of the most important processing routes for titanium because it allows the microstructure to be refined while the material is still in the solid state.

Titanium alloys are usually forged well below their melting point, often in temperature windows that are selected to balance plasticity, flow stress, and phase control.

The main issue is that titanium is not “easy” when hot simply because it has a high melting point.

Its formability depends strongly on phase state, شیمی آلیاژ, strain rate, و تاریخچه حرارتی.

If forging is done too cold, the material becomes difficult to deform. If it is done too hot or with poor control, grain growth or phase imbalance can degrade mechanical properties.

به همین دلیل, titanium forging is often divided into carefully managed regimes such as alpha forging, beta forging, یا near-beta processing, depending on the alloy and the desired property profile.

The selection of route has a direct influence on strength, مقاومت در برابر خستگی, سختی شکستگی, و ثبات بعدی.

عملیات حرارتی

Heat treatment is central to titanium manufacturing because titanium alloys are highly microstructure-dependent.

Their properties are not determined by chemistry alone; they are also determined by the relative amounts, اشکال, and distributions of alpha and beta phases after thermal processing.

The most common heat-treatment goals include:

• تسکین استرس,
• stabilization of phase balance,
• strength improvement,
• toughness optimization,
• and control of residual stresses after forming or welding.

This is where titanium’s melting point becomes relevant indirectly.

The metal’s high melting temperature provides room for thermal processing, but the useful heat-treatment window is defined much earlier by phase transformations.

A titanium alloy may remain far below melting and still undergo major property changes simply because it has crossed a critical transformation range.

جوش

Titanium is weldable, but welding is one of the most quality-sensitive operations in titanium manufacturing.

The melting point itself is not the challenge; the challenge is protecting the molten pool and the hot surrounding material from atmospheric contamination.

در دمای بالا, titanium readily absorbs oxygen, نیتروژن, هیدروژن.

Even small amounts of contamination can cause embrittlement, تغییر رنگ, or loss of mechanical performance. That is why welding titanium typically requires:

• highly effective inert gas shielding,
• excellent joint cleanliness,
• tight control of heat input,
• and disciplined post-weld gas coverage.

The weld zone must often be protected until it cools sufficiently to avoid picking up contaminants.

در بسیاری از محیط های تولید, welding quality is judged not only by bead appearance and penetration, but also by color, shielding effectiveness, and microstructural consistency.

ماشینکاری

Titanium is often described as a difficult machining material, and that reputation is well earned.

Its high strength, هدایت حرارتی کم, and tendency to concentrate heat at the cutting edge create a demanding machining environment.

Instead of carrying heat away efficiently, titanium tends to keep it near the tool-workpiece interface.

That leads to several machining concerns:

• پوشیدن ابزار سریع,
• بریدگی لبه,
• tendency toward work hardening in some alloys,
• and a narrow process window between efficient cutting and tool damage.

The high melting point is relevant here because it gives titanium a large thermal ceiling, but in machining the cutting edge can still fail long before the metal approaches melting.

به عبارت دیگر, titanium’s thermal robustness as a bulk material does not make it easy to cut. It simply means the tool is operating in a difficult heat-transfer regime.

تولید افزودنی

Titanium is highly suitable for additive manufacturing, especially in powder-bed fusion and directed-energy deposition processes.

Its combination of low density, قدرت خاص, and corrosion resistance makes it attractive for complex, high-value components.

هر چند, additive manufacturing places unusual demands on titanium because the process repeatedly creates very small melt pools at high temperature.

This intensifies the importance of:

• atmosphere control,
• powder quality,
• مدیریت حرارتی,
• and post-build stress relief or heat treatment.

Titanium’s melting point provides a useful thermal ceiling for additive systems, but the practical success of a print depends just as much on melt-pool stability and contamination control.

Parts may be produced well below the bulk melting point of titanium, yet still suffer property variation if process parameters are unstable.

7. تحلیل تطبیقی: Titanium’s Melting Point vs. Other Engineering Metals

فلزات خالص: Key Comparisons

آلیاژ: Titanium Alloys vs. آلیاژهای رقیب

8. پایان

Titanium’s melting point is usually cited at 1668–1670°C, and carefully measured high-purity data support essentially the same value. But the deeper engineering story is richer than that single number.

Titanium also has a critical α-to-β transformation near 885درجه سانتیگراد, strong sensitivity to hot-stage contamination, and alloy-dependent melting ranges that matter greatly in real manufacturing.

From a materials-engineering perspective, titanium is compelling because it combines a high melting point with low density, مقاومت در برابر خوردگی قوی, and tunable microstructure.

That is why it is used so widely in advanced structures and corrosive-service components.

Its melting point does not merely tell us when the metal turns liquid; it helps define the thermal architecture that makes titanium useful in the first place.

متداول

Can titanium be melted in a standard residential furnace?

هیچ. Standard residential furnaces typically operate at temperatures well below 1,000°C.

Melting titanium requires specialized industrial equipment capable of exceeding 1,668°C within a vacuum or inert argon atmosphere to prevent immediate chemical degradation.

Why is titanium considered more difficult to melt than iron or steel?

While the melting point of titanium (1,668درجه سانتیگراد) is only approximately 130°C higher than that of iron (1,538درجه سانتیگراد), the primary difficulty lies in titanium’s chemical reactivity.

برخلاف فولاد, which can be melted in the presence of oxygen, molten titanium acts as a universal solvent, reacting with the atmosphere and conventional crucible materials, thus requiring expensive vacuum metallurgy systems.

Do titanium alloys have the same melting point as pure titanium?

هیچ. Titanium alloys generally melt over a دامنه rather than at a single point, because alloying changes solidus and liquidus temperatures.

Is titanium harder to weld because of its melting point?

Not because of the melting point alone. The bigger issue is titanium’s high-temperature reactivity, which requires strong shielding and clean process control.

Is titanium a refractory metal?

هیچ, not in the strict metallurgical sense. Its melting point is high, but not in the refractory class of metals such as tungsten.
