UNS C95400 Aluminum Bronze

1. Yönetici Özeti

BİZ C95400 is one of the most widely used cast aluminum bronzes because it combines yüksek güç, İyi aşınma direnci, and strong corrosion performance, especially in marine and industrial service.

It is standardized as an aluminum bronze casting alloy under ASTM B148 and related specifications, and it is commonly referenced as CDA 954.

Pratik olarak, it is a “workhorse” alloy for heavily loaded parts such as gears, burçlar, valf gövdeleri, Pompa Bileşenleri, and bearing elements.

2. What is UNS C95400 Aluminum Bronze?

UNS C95400 aluminum bronz is a high-strength cast copper alloy designed for severe mechanical and corrosive service.

Basit terimlerle, it is a bronze whose performance has been significantly upgraded by alloying copper with aluminum, ütü, and a small amount of nickel.

The result is a material that bridges two traditionally separate requirements: it is strong enough for heavily loaded machine parts, yet corrosion-resistant enough for marine and chemical environments.

This alloy is often described as a general-purpose aluminum bronze, but that label understates its engineering value.

C95400 is widely chosen when a component must survive wear, shock loading, sürgülü kontak, and exposure to seawater or other aggressive fluids.

It is not a decorative bronze. It is a working material for pumps, vanalar, burçlar, rulmanlar, vites, şerit giymek, and structural hardware where failure is costly.

Anahtar Özellikler

High strength for a copper alloy

Compared with many common bronzes, C95400 offers markedly higher tensile and yield strength.

That makes it suitable for parts subjected to heavy load, basınç, darbe, or repeated mechanical stress.

Excellent wear and galling resistance

One of the alloy’s defining advantages is its ability to resist metal-to-metal wear and deformation.

This is especially valuable in bearings, burçlar, valf koltukları, and slow-moving sliding interfaces.

Strong corrosion resistance

C95400 performs well in seawater and many industrial environments because the aluminum in the alloy promotes a protective oxide film on the surface.

That is a major reason it is so common in marine and pump applications.

Good response to heat treatment

The alloy responds well to solution treatment, söndürme, and stress-relief procedures.

Pratikte, heat treatment is used to improve strength, stabilize properties, and reduce the risk of corrosion-sensitive phase formation.

Castability and versatility

C95400 is commonly supplied as continuous cast, santrifüj kadrosu, or sand cast stock.

That makes it available in a wide range of forms, including bars, tüpler, burçlar, wear plate, and custom cast shapes.

Reliable tribological behavior

In applications involving friction, boundary lubrication, or intermittent lubrication, the alloy performs well because it combines hardness with anti-seizure behavior.

This is why it is often used where a steel part must run against a bronze part.

3. Alaşım kimliği ve tipik kimya

4. Physical and mechanical properties of C95400 Alloy

C95400 is valued for high strength among cast copper alloys. Typical room-temperature properties depend on form and heat treatment, but representative values are:

Fiziksel özellikler

Mekanik Özellikler

5. Döküm davranışı ve dökümhane uygulaması

Casting behavior

UNS C95400 is primarily valued as a cast aluminum bronze, and its performance begins long before machining or service.

From a foundry standpoint, it is not a “forgiving” alloy in the sense of low-performance bronzes; rather, it is a high-performance casting alloy whose quality depends heavily on melt control, katılaşma kontrolü, and post-cast thermal treatment.

Copper Development Association data describe its casting characteristics as having relatively low casting yield, high drossing tendency, medium fluidity, medium gassing tendency, Ve high shrinkage during solidification.

Those characteristics make melt cleanliness, proper risering, and careful feeding design especially important.

Ortak döküm yolları

In practical foundry work, C95400 is usually cast by kum dökümü, savurma döküm, continuous casting, or permanent mold methods, depending on the part geometry and service requirement.

Centrifugal and continuous cast forms are especially common for bushings, rulmanlar, and wear components because they help produce a dense, more uniform structure with fewer internal discontinuities than poorly controlled conventional casting.

Copper Development Association guidance also lists C95400 as suitable for cast forms such as centrifugal castings, continuous castings, permanent mold castings, and sand castings under the relevant ASTM and SAE specifications.

Foundry practice considerations

Because the alloy contains significant aluminum, it is more sensitive to oxidation and melt loss than simpler copper alloys.

That means furnace atmosphere, melt superheat, bekletme süresi, and transfer practice matter.

Excessive overheating should be avoided because it can increase dross formation and encourage compositional drift, while inadequate control can leave the casting more porous or less chemically uniform.

In the foundry, the goal is to maintain a clean melt, reduce inclusion pickup, and avoid section-to-section property scatter.

Copper.org’s alloy data also show that C95400 has relatively high shrinkage behavior, so sound gating and feeding practice are essential to prevent shrinkage cavities and internal defects.

Döküm sonrası ısıl işlem

Post-cast heat treatment is a major part of the C95400 process window, not an optional refinement.

Copper.org lists stres rahatlaması 600 ° f, solution treatment at 1600–1675 °F followed by water quenching, Ve annealing at 1150–1225 °F for the alloy.

In engineering terms, these treatments are used to reduce residual stress, improve microstructural uniformity, and adjust the balance between strength and ductility.

The Copper Development Association notes more broadly that aluminum bronzes with aluminum content above about 9.5% Isıya göre işlenebilir, and that manipulating the microstructure can produce properties that are not available in the as-cast condition.

6. İşlenebilirlik, birleştirme, ve bitirme

C95400 is reasonably machinable for a high-strength copper alloy, but it is not free-cutting.

Tool wear is higher than with softer bronzes, and cutting parameters should be chosen to avoid work-hardening, chatter, and built-up edge.

İşleme

For turning, frezeleme, and drilling:

• use rigid setups,
• keep tools sharp,
• apply generous coolant,
• favor carbide tooling for production work,
• avoid excessive dwell that can rub rather than cut.

Because the alloy can be hard and abrasive, machinability is good in an industrial sense but not outstanding.

Machining economics are often acceptable when balanced against the alloy’s service-life advantages.

Birleştirme

Joining is possible, but method matters.

• Brazing is generally acceptable.
• Gas-shielded arc welding and coated-metal arc welding are often used.
• Oxyacetylene welding is generally not recommended.
• Kaynaktan sonra, stress relief is usually advisable.

The main concern in welding is preserving microstructure and minimizing the risk of corrosion-sensitive phase formation in the heat-affected zone.

Post-weld stress relief helps reduce residual stress and improves reliability.

Bitirme

Yüzey kaplaması commonly includes machining, parlatma, and in some cases coatings or controlled finishing for wear surfaces.

Because the alloy is used in bearings, vites, and valve parts, finish quality can matter as much as bulk strength.

Hassas uygulamalar için, final machining after heat treatment is often preferred to preserve dimensional accuracy.

7. Korozyon, giymek, and tribological performance

This is where C95400 truly earns its reputation.

Korozyon direnci

The alloy has high corrosion resistance in many environments, including seawater and numerous industrial fluids.

A protective aluminum oxide film forms naturally on the surface, helping slow further attack.

That passive behavior is a major reason aluminum bronzes became standard materials in marine and pump service.

Fakat, the alloy is not invincible. In duplex aluminum bronzes, selective phase corrosion can occur, especially dealuminification, where aluminum is preferentially removed from the structure.

This is most likely in crevices, shielded areas, poorly heat-treated castings, and weld-repaired regions.

The risk is not that the alloy is “bad,” but that its performance depends strongly on microstructural quality and exposure conditions.

Direnç Giymek

C95400 is especially good in metal-to-metal wear situations. It resists galling better than many steels and many softer bronzes.

This makes it suitable for sliding interfaces, itme rondelaları, burçlar, ve yatak yüzeyleri.

Tribological behavior

Tribology is where the alloy’s value often becomes obvious. It has:

• strong seizure resistance,
• good load capacity,
• good fatigue resistance under repeated contact,
• reliable behavior in marginal lubrication conditions.

That combination explains its use in bearings, şerit giymek, and valve components. Kısacası, if the service environment is corrosive, aşındırıcı, and mechanically loaded, C95400 often sits near the top of the candidate list.

8. Typical applications of C95400 Aluminum Bronze

UNS C95400 aluminum bronze is widely used in industries where components must withstand combined mechanical loading, giymek, ve aşındırıcı ortamlar.

Its application profile is driven by three core attributes: yüksek güç, Mükemmel aşınma direnci, and strong corrosion resistance—particularly in marine and industrial service.

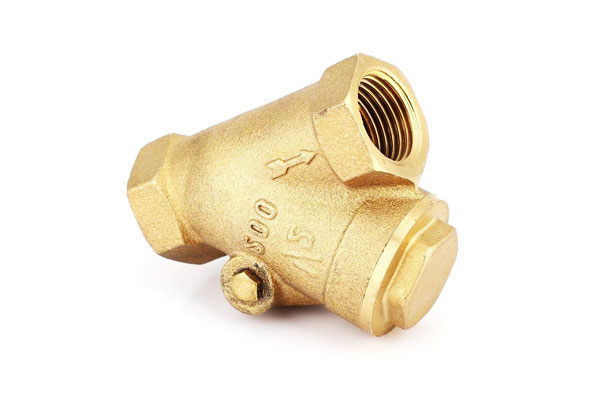

Pump and valve industry

C95400 is extensively used in fluid-handling systems due to its corrosion resistance and mechanical strength.

Typical components include:

• Pompa pervaneleri
• Pompa kasaları
• Valf gövdeleri
• Valve seats and guides

These components benefit from the alloy’s ability to resist erosion-corrosion Ve cavitation damage, especially in water and seawater systems.

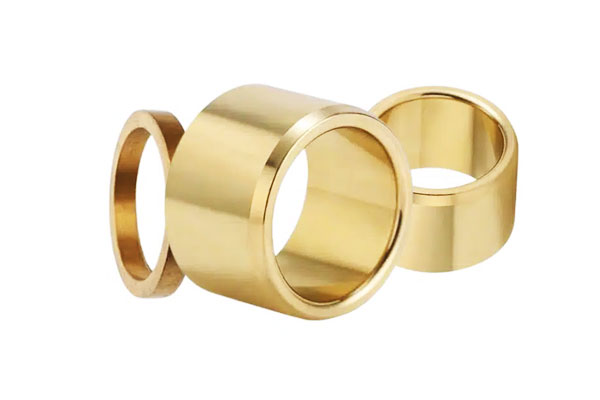

Bearing and bushing systems

The alloy is a standard material for heavy-duty bearing applications where load capacity and wear resistance are critical.

Tipik Kullanımlar:

• Kaymalı yataklar
• Sleeve bushings
• İtme rondelaları
• Guide bushings

Onun anti-galling properties Ve good performance under boundary lubrication make it ideal for slow-speed, high-load applications.

Deniz ve deniz ekipmanı

C95400 is widely used in marine environments due to its strong resistance to seawater corrosion.

Tipik uygulamalar:

• Shipboard hardware
• Tahrik sistemi bileşenleri
• Güverte bağlantı parçaları
• Offshore structural components

Its ability to form a koruyucu oksit tabakası helps ensure long-term durability in saltwater exposure.

Power generation and heavy industry

In power plants and heavy industrial systems, components are often exposed to high stress and aggressive media.

Common applications:

• Türbin bileşenleri
• Wear plates
• Structural supports in high-load environments
• Industrial fittings and connectors

The alloy’s combination of strength and thermal stability makes it suitable for these demanding conditions.

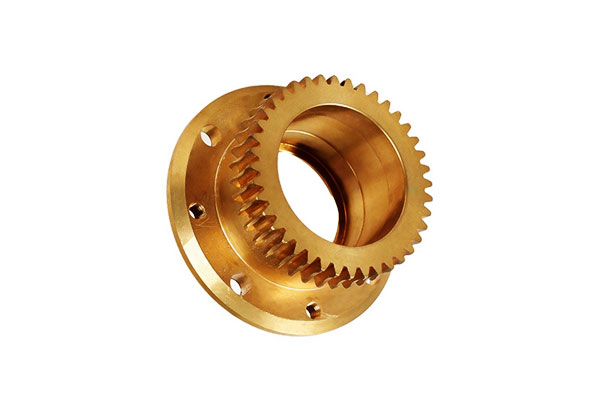

Gears and mechanical transmission components

C95400 is frequently used in gear systems where resistance to wear and shock loading is required.

Örnekler:

• Solucan dişlileri
• Dişli Boşlukları
• Drive components

Çelikle karşılaştırıldığında, the alloy offers better resistance to scoring and seizure in certain sliding contact conditions.

Sliding and wear-resistant components

The alloy is widely used in parts subject to continuous friction or abrasion.

Typical components:

• Wear strips
• Slayt plakaları
• Guide rails
• Cam followers

Onun high hardness and low tendency to seize make it reliable in dry or marginally lubricated systems.

9. Comparison with related copper alloys

10. Sonuç

BİZ C95400 aluminum bronze is a classic engineering alloy with a modern relevance that has not diminished.

Its appeal is rooted in a very practical combination: yüksek güç, strong wear resistance, good seawater performance, and dependable service in difficult mechanical environments.

The alloy is best understood as a system rather than a simple chemistry. Its performance depends on composition, casting practice, ısıl işlem, ve hizmet koşulları.

When those variables are controlled, C95400 can deliver long life in pumps, vanalar, burçlar, vites, ve deniz ekipmanı.

When they are not, selective corrosion and property scatter can erode its advantages.

From a design standpoint, C95400 is not the universal answer, but it is one of the most technically balanced answers available among cast copper alloys.

That is why it remains a standard material in industries that cannot afford premature failure.



SSS

Is UNS C95400 the same as 954 bronz?

Evet. “954 bronze,” “C954,” and “UNS C95400” are common commercial names for the same aluminum bronze family alloy.

Is C95400 magnetic?

It is generally considered nonmagnetic in normal service, although minor responses can appear depending on processing and attached components.

Can C95400 be welded?

Evet, but welding practice matters. Gas-shielded arc welding and coated-metal arc welding are commonly used. Oxyacetylene welding is generally not preferred.

Is C95400 good in seawater?

Evet. It is widely used in marine service because of its strong seawater corrosion resistance, though crevice conditions and poor heat treatment can still cause trouble.

What is the main weakness of C95400?

Its main weakness is not low strength; it is sensitivity to microstructure and selective phase corrosion if the alloy is improperly cast, Isı ile işlenmiş, or repaired.
