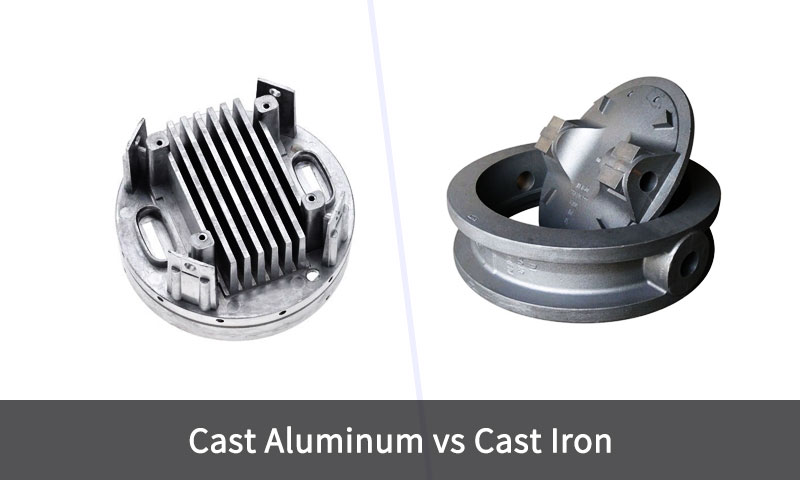

Cast Aluminum vs Cast Iron — Complete Material Selection Guide

1. giriiş

Cast aluminum and cast iron are two of the most widely used casting materials in industry.

Both offer routes to produce complex net-shape components, but they differ fundamentally in density, sertlik, strength modes, termal davranış, döküm yöntemleri, corrosion resistance and lifecycle cost.

Selecting between them is a trade-off among weight, sertlik, Direnç Giymek, işlenebilirlik, cost and operating environment.

This article compares the two across technical axes and provides actionable data and selection guidance.

2. What is cast aluminum?

Alüminyum refers to components produced by pouring molten aluminum (or aluminum alloy) into a mould and letting it solidify into the final or near-final geometry.

Because aluminum has a relatively low melting point, good fluidity in alloyed form, and a low density, cast aluminum is a preferred choice where complex geometry, hafif, thermal conductivity or corrosion resistance are important.

Casting routes for aluminum include high-pressure die casting, low-pressure and gravity permanent-mold casting, kum dökümü, and investment (Kayıp) döküm; each route gives different limits on wall thickness, yüzey kaplaması, dimensional accuracy and mechanical properties.

Özellikler

• Hafif: density ≈ 2.6–2.8 g/cm³ (tipik olarak 2.70 g/cm³).
• Low elastic modulus: Young’s modulus ≈ 69–72 GPa (≈ 69 GPa typical).
• İyi termal iletkenlik: alloys vary but often 100–200 W·m⁻¹·K⁻¹; pure aluminium is ~237 W·m⁻¹·K⁻¹.
• İyi korozyon direnci: forms a stable oxide film; behaviour improved with anodizing or coatings.
• Ductile fracture behavior: many cast Al alloys are reasonably ductile (Alaşım ve ısıl işlemeye bağlı olarak).
• Easily machined: comparatively low cutting forces and good machinability for many alloys.
• Geri dönüştürülebilir: aluminium is highly recyclable with relatively low energy to remelt versus primary production.

Common aluminum alloys (typical cast families)

3. What is cast iron?

Dökme demir is a family of iron-carbon alloys produced by pouring molten metal into molds and allowing it to solidify.

What distinguishes cast irons from steels is their relatively high carbon content (tipik olarak >2.0 ağırlıkça% c) and the presence of graphitic carbon in the as-cast microstructure.

The carbon commonly occurs as graphite (in several morphologies) or as iron carbide (çimento) depending on alloy chemistry and solidification conditions.

That graphite — and the matrix that surrounds it — controls the mechanical behavior, machinability and application space of the various cast-iron types.

Cast irons are the workhorses of heavy, wear-resistant and vibration-sensitive applications because they are economical to cast in large or complex shapes, offer excellent damping, and can be tailored through chemistry and post-casting heat treatment (Örn., Doğu Temperleme) to a wide range of properties.

Anahtar Özellikler

• Graphite morphology controls properties. The shape, size and distribution of graphite (flake, spheroidal, compacted) dominate tensile ductility, sertlik, stiffness and machinability:

• • Flaky (gri) grafit produces good machinability and damping but lower tensile strength and notch sensitivity.
  • Küre (nodular/ductile) grafit yields much higher tensile strength and ductility.
  • Compacted graphite (CGI) is intermediate — better strength and thermal fatigue resistance than gray iron while retaining good damping.

• Mükemmel titreşim sönümleme. Graphite nodules/flakes interrupt elastic wave propagation, so cast irons are preferred for machine-tool frames, engine blocks and housings where damping suppresses noise and vibration.
• Good compressive strength and wear resistance. Especially in pearlitic and white irons; suitable for heavy-duty bearings, rollers and wear parts.
• Relatively brittle in tension (Bazı notlar). Gray iron is notch sensitive and shows low elongation; ductile iron improves toughness significantly but still behaves differently from steels.
• Economical for large/complex castings. Sand casting and shell molding are well established; büzülme, feeding and directional solidification are managed with standard foundry techniques.
• Wide design envelope via post-solidification treatment. Through heat treatments (normalleştirme, tavlama, Doğu Temperleme) ve alaşım (İçinde, CR, Mo),
  cast irons can be tailored from very hard wear grades to tough structural grades (Örn., ADI—Austempered Ductile Iron).
• Good thermal stability in many grades. Some cast irons preserve dimensional stability and strength at elevated temperatures better than aluminum alloys.

Common cast-iron types

Below is a practical summary of the major cast-iron families, typical chemistry trends, microstructure and representative properties / başvuru.

4. Mekanik Özellikler Karşılaştırması

Numbers are presented as practical, foundry-level tipik aralıklar (not guaranteed minima/maxima) because actual values depend strongly on exact chemistry, casting route, bölüm boyutu, ve ısı işlemi.

Typical mechanical property ranges — representative cast aluminum vs cast iron grades

5. Thermal and Casting Process Considerations

Melting and solidification behavior

• Melting point / sıvı: aluminium alloys melt in the ~ 550-650 ° C menzil (pure aluminium 660.3 ° C).
  Cast iron solidifies at higher temperatures (~1150–1250 °C depending on composition) and forms graphite or cementite based on composition and cooling rate.
• Termal iletkenlik: aluminum alloys typically conduct heat significantly better than cast iron (often 2–4× higher), which affects mold cooling, solidification speed and chill behavior.
• Solidification shrinkage: typical linear shrinkage for aluminum alloys ~1.3–1.6%; gray cast iron shrinkage is smaller (~0.5–1.0), though micro- and macro-shrinkage depend on section thickness and feeding.

Casting methods & typical use

• Döküm alüminyum: commonly produced by Die Döküm (yüksek basınçlı), kalıcı kalıp, düşük basınçlı, Ve kum dökümü.
  Die casting yields excellent surface finish and thin-wall capability; sand casting handles large, ağır, or complex parts with lower tooling cost.
• Dökme demir: tipik olarak kum dökümü (green-sand, kabuk) Ve Kayıp Kost/kabuk for complex shapes.
  Ductile iron castings are commonly sand-cast. Cast iron tolerates large sections and heavy castings well.

Boyutsal toleranslar & yüzey kaplaması

• Die-cast aluminum: best dimensional capability of cast routes — typical tolerances in the range ±0.1–0.5 mm for many dimensions (depends on size), surface finish Ra often 0.8–3.2 um asi.
• Permanent-mold aluminum: tolerances ±0.25–1.0 mm, surface finish better than sand casting.
• Sand-cast iron: coarser tolerances, typically ±0.5–3.0 mm depending on size and finish; surface finish rougher, Ra often 6–25 um as-cast unless machined.
• Wall thickness capability: die-cast aluminum can produce thin walls (<2 mm) economically;
  cast iron typically requires thicker sections to avoid defects and to feed shrinkage, though modern molding can achieve moderate thin sections for small parts.

Machinability and secondary operations

• Alüminyum machines easily at higher speeds and lower forces; tooling life is good; machining allowances are modest for die-cast parts.
• Dökme demir machines differently — gray iron is relatively easy to machine due to graphite acting as chip breaker and lubricant;
  ductile iron is harder and requires different tooling; cast iron cutting often results in brittle chips and requires appropriate tool grades.

6. Corrosion Resistance and Operating Environments

• Alüminyum: naturally corrosion-resistant due to stable oxide film; performs well in atmospheric, mildly corrosive and marine environments if appropriate alloy/coating is chosen.
  Anodizing and paint systems further improve surface durability and appearance.
• Dökme demir: ferrous material prone to rust (oksidasyon) in wet environments; requires protective coatings (boyalar, kaplama), cathodic protection or alloying for corrosion resistance.
  Bazı uygulamalarda (motor blokları), cast iron performs acceptably because of oil protection and controlled environments.
• High-temperature performance: dökme demir (especially gray and ductile) retains strength at elevated temperatures better than aluminum.
  Aluminum’s strength drops rapidly as temperature increases above ~150–200 °C, limiting its use in hot-engine or exhaust-exposed components unless special alloys or cooling are used.

7. Advantages of Cast Aluminum vs Cast Iron

Cast aluminum advantages

• Weight savings: ~62.5% lighter for equivalent volume than cast iron — critical in transportation for fuel economy.
• Yüksek termal iletkenlik: Daha iyi ısı dağılması (helpful for heat exchangers, cylinder heads in automotive after appropriate design).
• İyi korozyon direnci asi; optionally anodizable for enhanced protection and aesthetics.
• Thin-wall and complex thin-feature capability (Özellikle Die Casting) — enables consolidated parts and cost savings upstream.
• Favorable recyclability and lower mass-related shipping costs.

Cast iron advantages

• Higher stiffness and damping: good for structures requiring rigidity and vibration control (takım tezgah tabanları, pompa gövdeleri).
• Superior wear resistance and tribological properties: pearlitic and white irons excel in abrasive/wear environments.
• Higher compressive strength and thermal stability at elevated temperatures — used for heavy-duty engine blocks, silindir astarları, and brake rotors.
• Typically lower raw material cost per kg and robust casting behavior for very large sections.

8. Limitations of Cast Aluminum vs Cast Iron

Cast aluminum limitations

• Lower stiffness: requires larger cross-sections or ribs to achieve equivalent stiffness — can reduce some weight advantages.
• Lower high-temperature strength: aluminum loses yield strength at elevated temperatures faster than iron.
• Less wear resistance: plain cast aluminum is softer; requires surface treatments (hard anodize, kaplamalar) for wear-critical surfaces.
• Porosity and gas-related defects: aluminium is prone to gas porosity and shrinkage defects if melt and casting practice are not controlled.

Cast iron limitations

• Ağır: higher density increases part mass — negative for weight-sensitive applications.
• Brittle tensile behavior: gray iron shows low tensile ductility and is prone to brittle fracture under impact; design must account for notch sensitivity.
• Corrodes if unprotected: requires coatings or corrosion management.
• Lower thermal conductivity than Al (slower heat dissipation); may require cooling design adjustments.

9. Cast Aluminum vs Cast Iron: Differences Comparison

Selection guidance (practical rules of thumb)

• Choose cast aluminum when: mass reduction, thermal dissipation, corrosion resistance and thin-wall feature consolidation are primary drivers (Örn., automotive body components, Isı Lavaboları, lightweight housings).
  Use aluminum die casting for high volumes and thin-walled, feature-rich parts; use A356-T6 when higher structural performance and post-heat treatment are required.
• Choose cast iron when: sertlik, sönümleme, wear resistance or elevated service temperatures are paramount (Örn., takım tezgah tabanları, fren bileşenleri, heavy duty housings, abrasive wear liners).
  Select ductile iron for structural parts that require toughness and some tensile ductility.
  Use gray iron when damping and machinability (for heavy machining operations) are important and tensile ductility is less critical.
• When in doubt, evaluate system-level tradeoffs: a heavier iron part may be cheaper per kg but increase downstream costs (yakıt tüketimi, işleme, kurulum);
  tersine, aluminum can reduce system mass but may require larger sections or inserts to achieve stiffness/wear life targets — run a part-level mass, stiffness and cost comparison.

10. Çözüm

Cast aluminum vs cast iron are complementary materials, each excelling in scenarios where their unique properties align with application requirements.

Aluminum castings dominates lightweight, high-efficiency sectors (automotive EVs, havacılık, Tüketici Elektroniği) thanks to its strength-to-weight ratio, termal iletkenlik, and complex castability. </span>

Cast iron remains irreplaceable in heavy-duty, cost-sensitive applications (takım tezgahı, construction pipes, traditional engines) due to its wear resistance, Titreşim sönümleme, and low cost.</span>



SSS

How much lighter is a cast aluminum part than the same volume cast iron part?

Typical densities: aluminum ~2.7 g/cm³ vs cast iron ~7.2 g/cm³. For equal component volume, alüminyum hakkında 62.5% daha hafif (Yani, same-volume aluminum mass = 37.5% of cast iron mass).

Can aluminum replace cast iron in engine blocks?

Aluminum is used extensively for modern engine blocks and cylinder heads to save weight.

Replacing iron requires careful design for stiffness, termal genişleme, cylinder liner strategies (Örn., cast-in liners, iron sleeves) and attention to fatigue and wear.

For high-load or high-temperature applications, cast iron or special aluminum alloys/designs may be preferred.

Which is cheaper: cast aluminum or cast iron?

On a per-kilogram basis, iron tends to be cheaper; on a per-part basis the answer depends on volume, alet (die-casting dies are expensive), machining time, and the weight-driven system costs (Örn., fuel consumption in vehicles).

Yüksek hacimler için, die-cast aluminum may be economical despite higher material cost.

Which material resists wear better?

Dökme demir (particularly pearlitic or white iron) generally exhibits superior wear resistance compared with as-cast aluminum.

Aluminum can be surface-treated or coated for wear applications but rarely matches hardened iron without added processes.

Does cast aluminum rust?

Aluminum does not rust like iron; it forms an oxide layer that protects it from further corrosion. Under some conditions (klorür maruziyeti, Galvanik Birleştirme) aluminum can corrode and may require coatings or cathodic protection.
